DP/HDMI 4K60 Fiber Extender

iTrans DH-F300

DisplayPort/HDMI™ combo connector (HDDP) supports both DisplayPort and HDMI™ video interfaces

Compliant with HDCP 2.3, DisplayPort 1.4 ALT Mode

Video bandwidth 8.1/5.4/2.7/1.62Gbps (DP) and 18Gbps (HDMI™)

Video resolution is up to 4K@60

Support any VESA standard resolution transmission

Automatic recognition of DP/HDMI™ on input and output ports

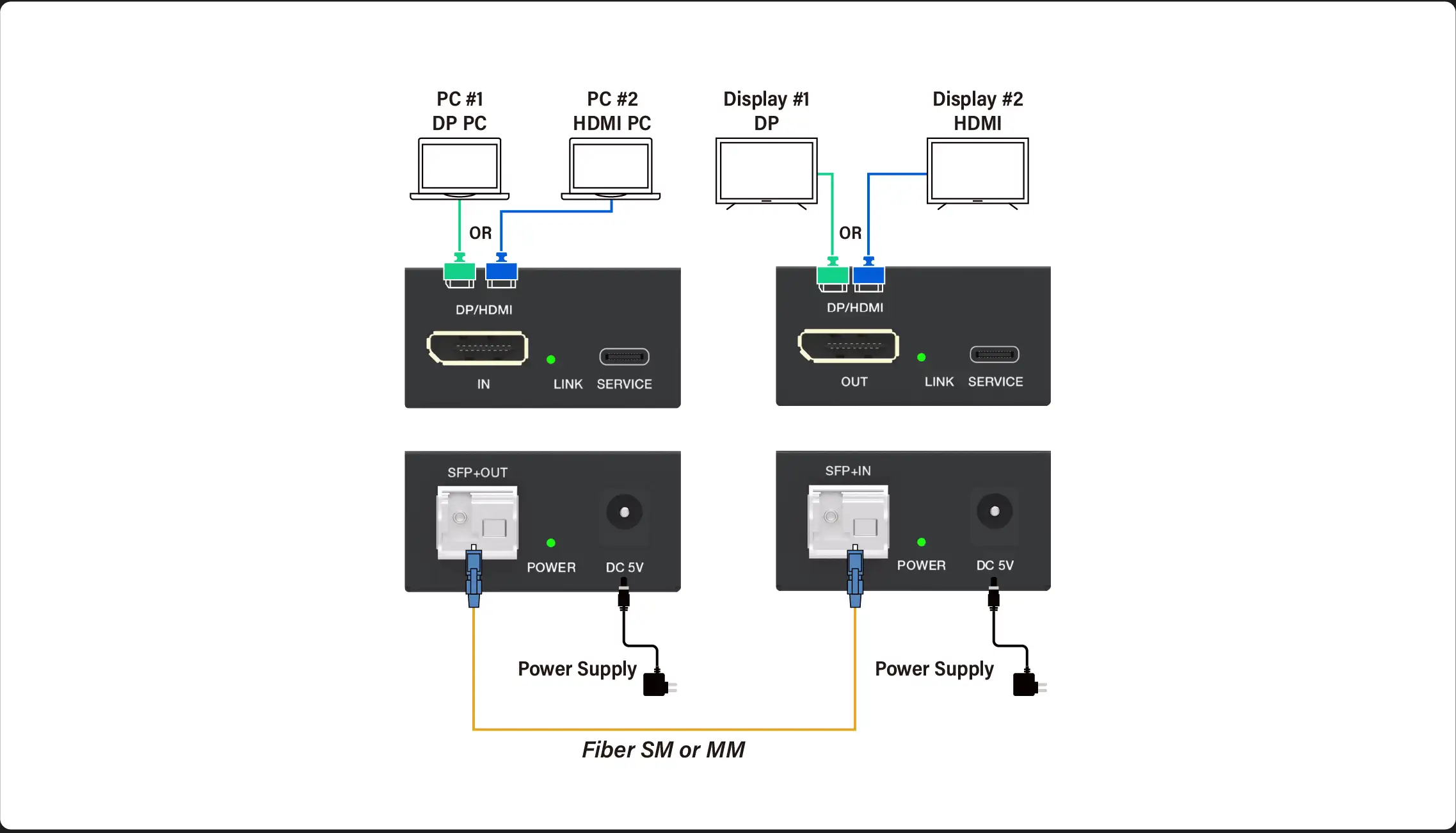

Four conversions of DP/HDMI™ are supported: DP to DP, DP to HDMI™, HDMI™ to DP, HDMI™ to HDMI™

Transmission distance up to 10km over a single-mode fiber optic cable

* Multi-mode fiber is supported in SFP modules. The distance over OM4 is up to 300m

Support LPCM 7.1CH, Dolby 5.1, Dolby TrueHD, Dolby Atmos, and DTS-HD Master, DTS:X Audio

HDR10, HDR10+, Dolby Vision, HLG pass-through

EDID transmission from Receiver to Transmitter

Compact design for easy and flexible installation

Can mix connection with iTrans UC-F300

Chat Now

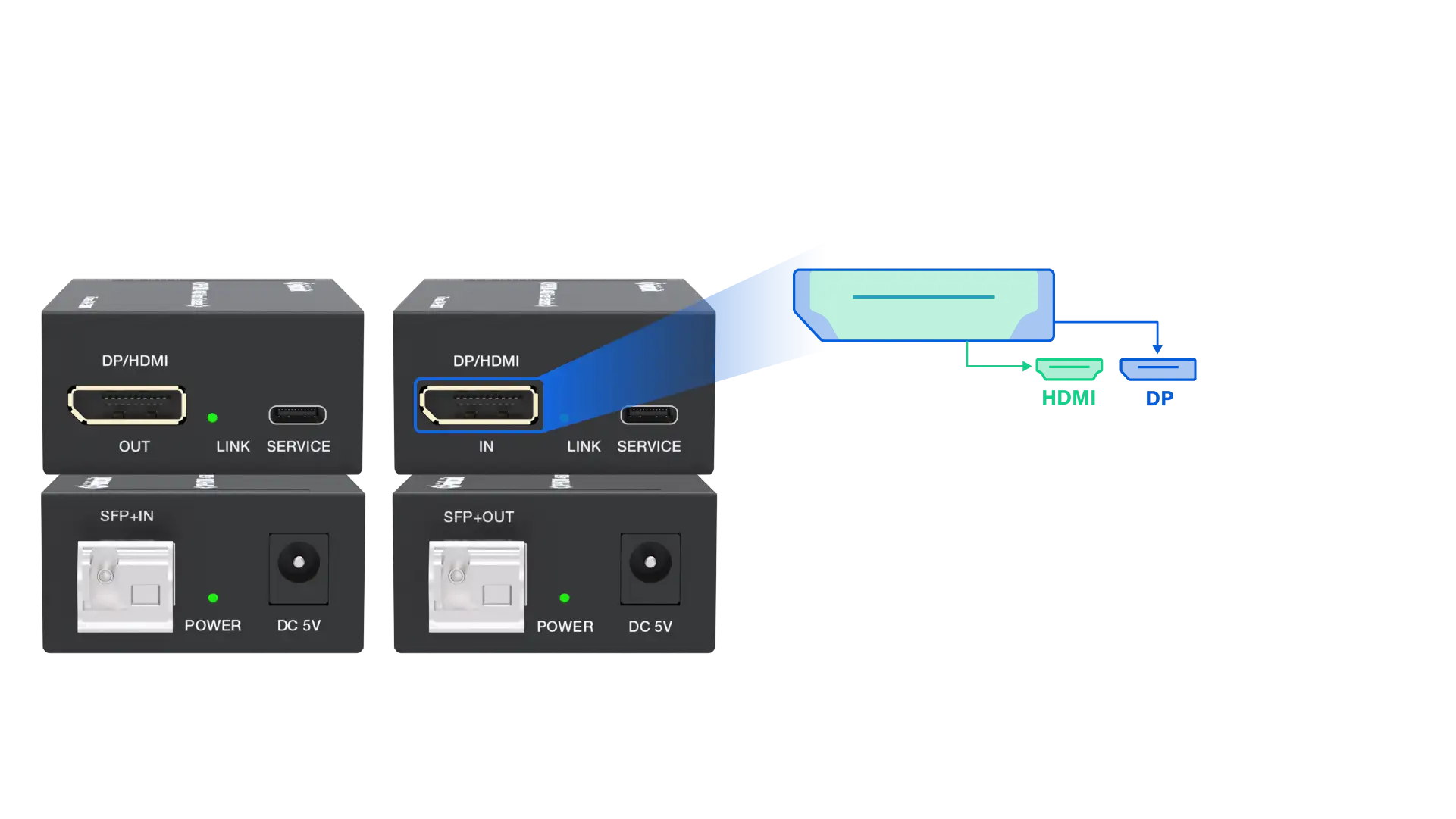

DisplayPort + HDMI 2-in-1

The "HDDP" port is compatible with
both DP and HDMI port.

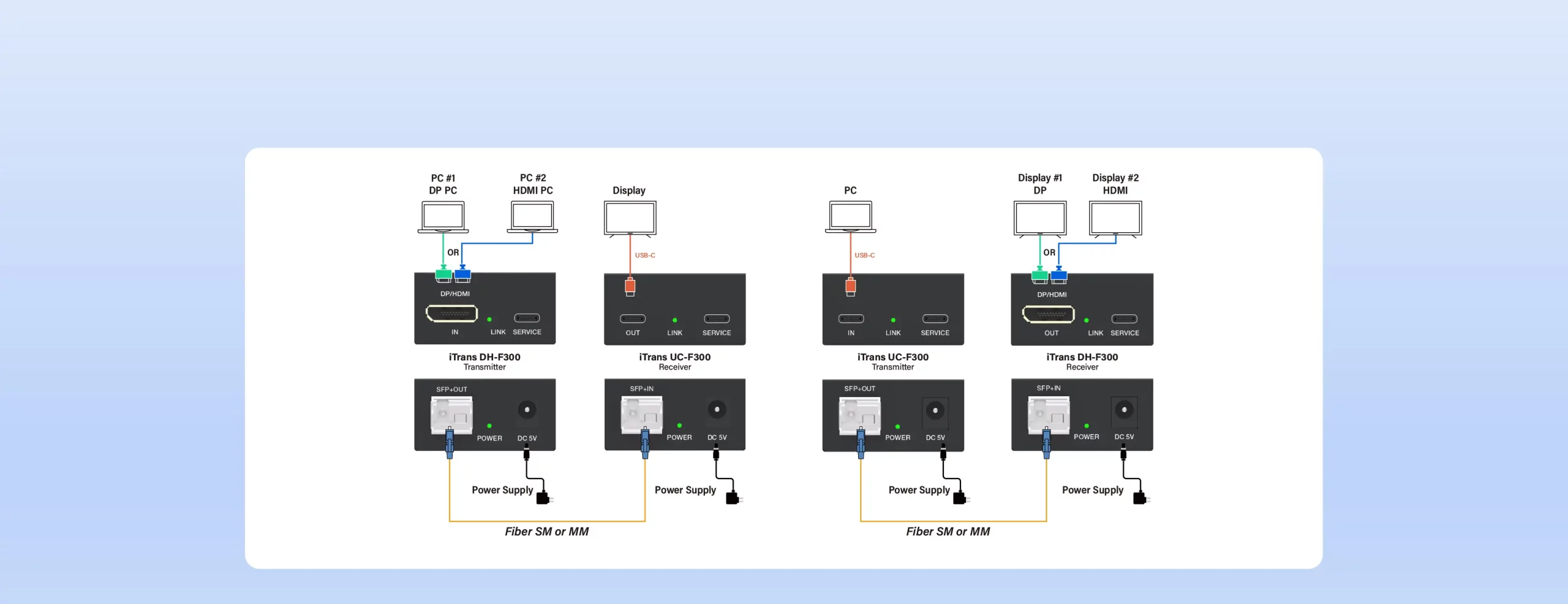

Mixed Connection

The iTrans DH-F300 can be mixed with the iTrans UC-F300, either Tx or Rx.
Flexible connection no matter USB-C, DP or HDMI ports.

Model	iTrans DH-F300
Name	DP/HDMI 4K60 Fiber Extender
HDMI™ Compliance	HDMI™ 2.0b
HDCP Compliance	HDCP 2.2
DP Compliance	DisplayPort 1.4a ALT Mode
Video Bandwidth	18Gbps (HDMI™) and 8.1/5.4/2.7/1.62Gbps (DP)
Color Space	RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
Fiber Optic Module	10G SFP+ module
HDR	HDR10, HDR10+, Dolby Vision, HLG
Video Resolution (Input & Output)	Max. 4096×2160/60Hz
Audio Format	LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
Transmission Distance	Up to 10km over single-mode LC fiber optic cable; Up to 300m over multi-mode OM4 LC fiber optic cable
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Transmitter	Input: 1× IN [DP/HDMI™ combo connector] Output: 1× SFP+OUT [LC female] Control: 1× SERVICE [USB-C, update port]
Receiver	Input: 1× OUT [DP/HDMI™ combo connector] Output: 1× SFP+IN [LC female] Control: 1× SERVICE [USB-C, update port]
Housing	Metal Enclosure
Color	Black
Dimensions	TX/RX: 80.8mm [W] × 49mm [D] × 25mm [H]
Weight	TX/RX: 112g
Power Supply	DC 5V/1A
Power Consumption	TX：2.7W (Max); RX: 2.4W (Max)
Operating Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Operating Humidity	20%~80% relative humidity, non-condensing
Storage Humidity	10%~90% relative humidity, non-condensing
Mix with iTrans UC-F300	YES
