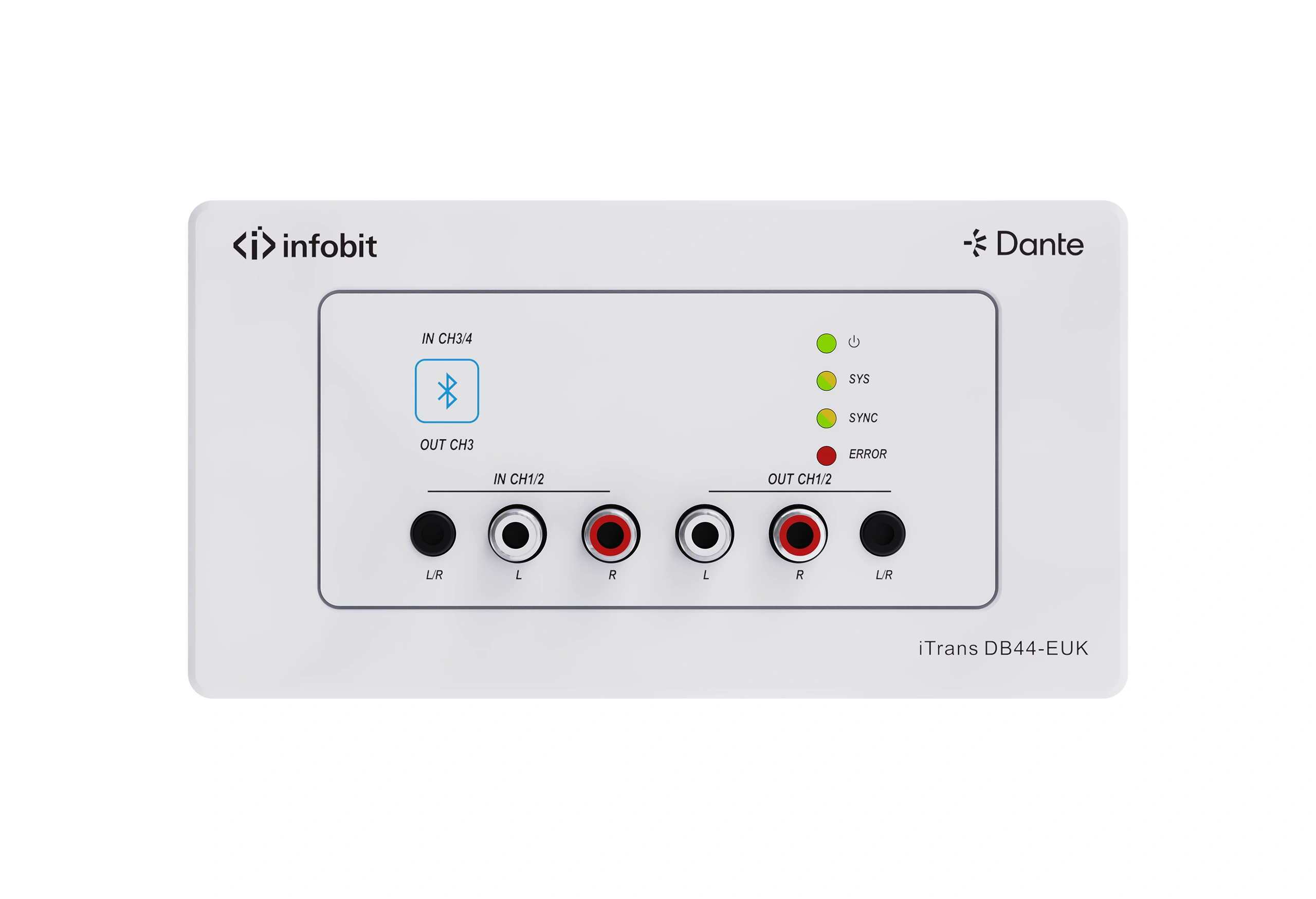

iTrans DB44-EUK

Dante 4×3 wall panel with Bluetooth.

One-key pairing with back-lit indication;

Supports Bluetooth 5.3, compliant with V5.0/4.0/2.1+EDR

Transmission distance without obstruction: up to 20m.

Compatible with most smartphones, Apple iPads, and Android tablets.

Controllable by Web-UI, Dante Controller, or Dante Director software.

Supports API for the central control.

Support Bluetooth ID rename.

EU & UK 2-in-one, 2-Gang Version

Chat Now

The convenience of wireless, the power of Dante

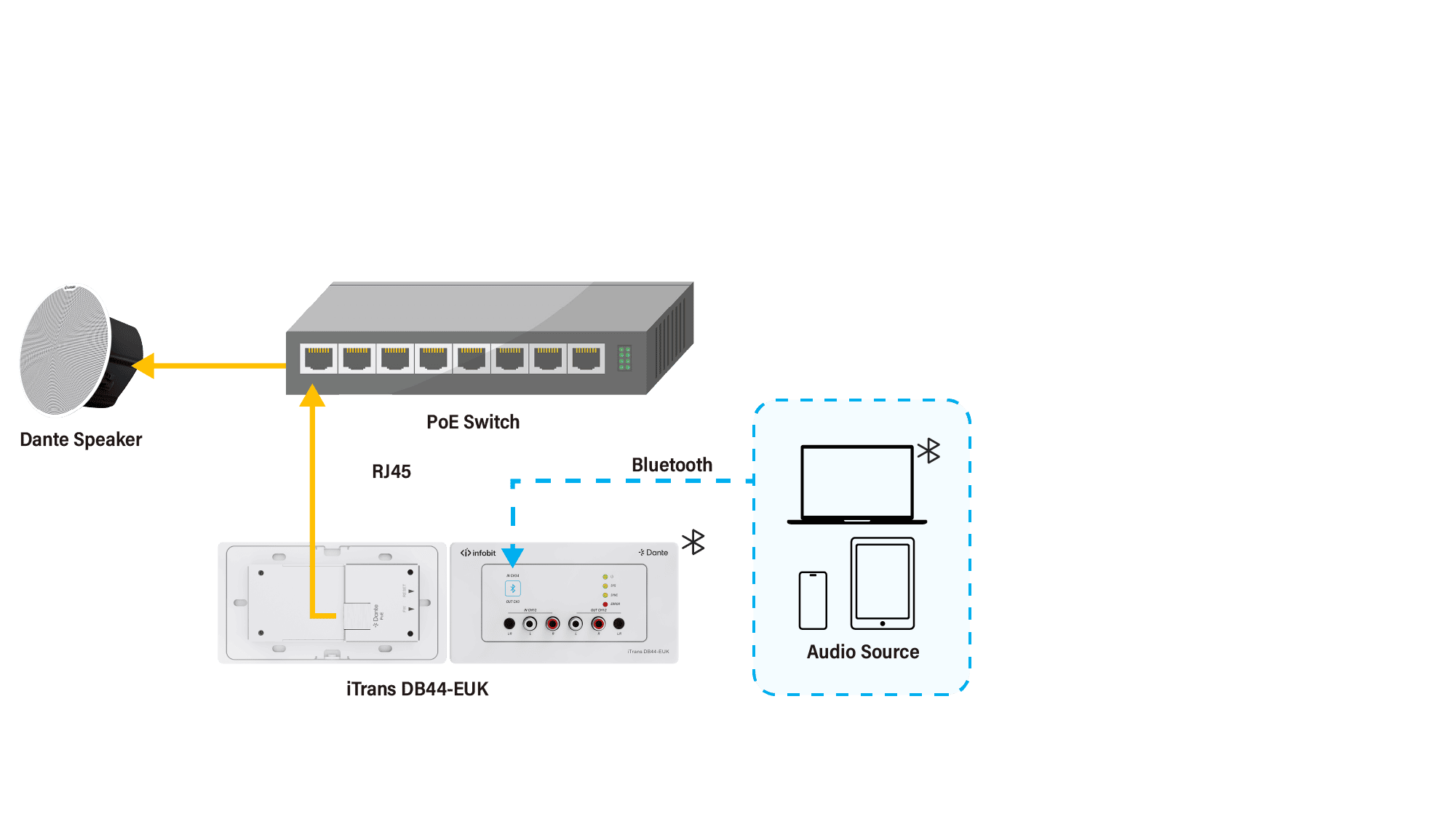

The iTrans DB44-EUK Bluetooth® wall plate lets you leverage the audio quality and connectivity of your Dante audio networks while being as easy to use as any Bluetooth® audio source. Simply pair the Bluetooth® adapter with your phone or PC for instant networked audio. Power is supplied via PoE, so there are no AC adapters to worry about.

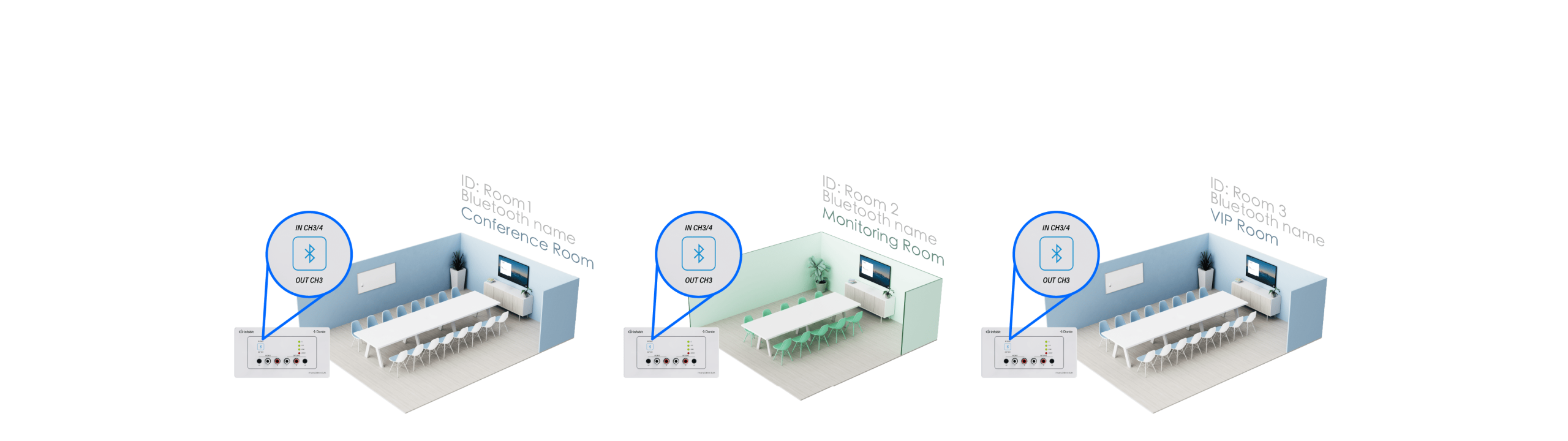

Renaming matters

The iTrans DB44-EUK support renaming the Bluetooth ID, ensure never connect wrong devices for multi-room projects.

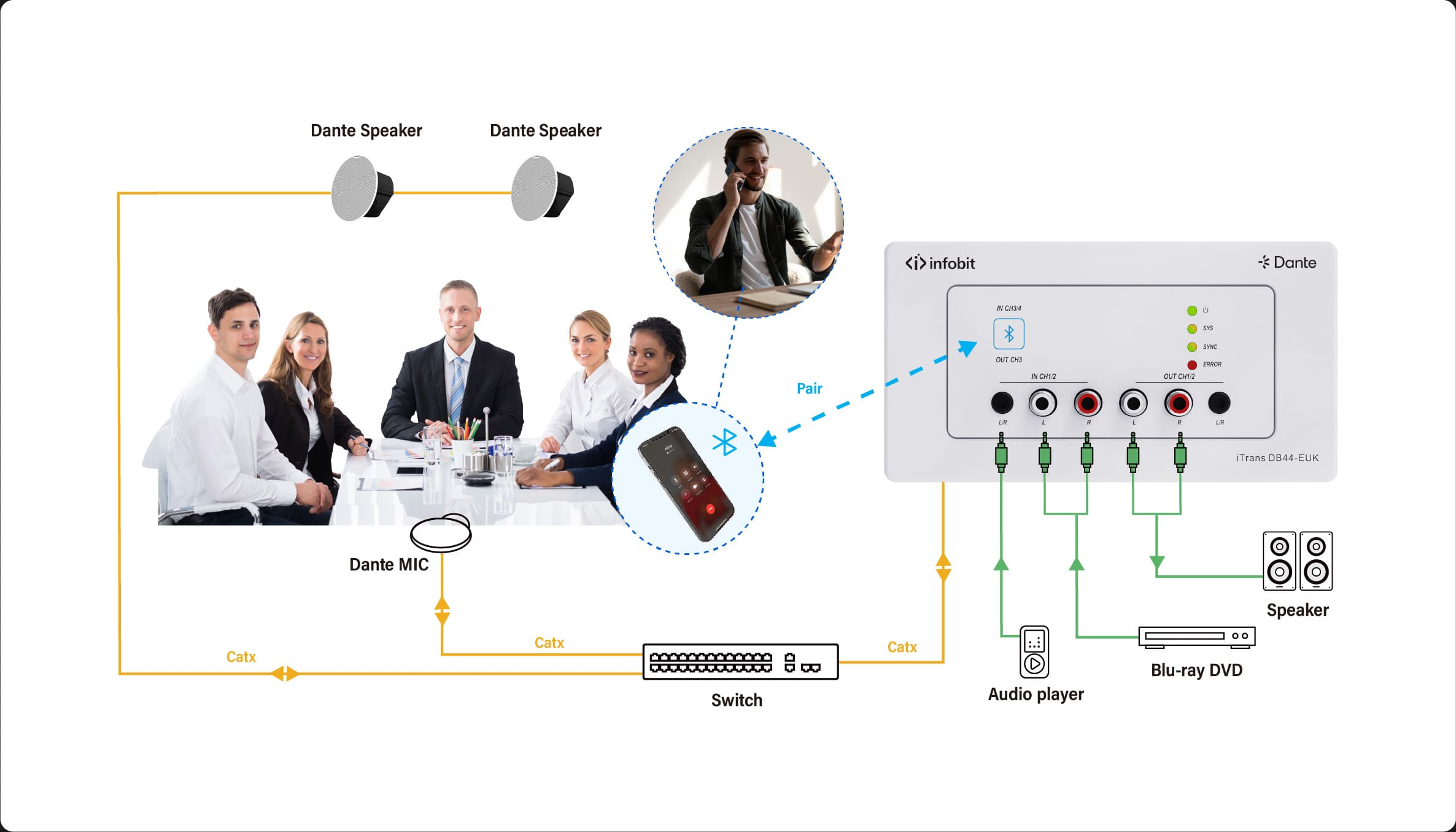

BLUETOOTH® and Dante

Wirelessly connect any PC or mobile device to your Dante audio network
No additional software or drivers required
Seamlessly migrate calls on mobile devices to
Dante-enabled conference room system
Channel routing is stored in the iTrans DB44-EUK
for consistent connections when used with
any Bluetooth-enabled device

Datasheet

Model	iTrans DB44-EUK
Name	4x3CH Dante Bluetooth Wallplate EU & UK 2-Gang Version
Input	(1) L+R unbalanced analog audio (1) 3.5 mm unbalanced analog audio
Input Connector	(2) RCA jack, (1)3.5mm mini jack
Output	(1) L+R unbalanced analog audio (1) 3.5 mm unbalanced analog audio
Output Connector	(2) RCA jack, (1) 3.5mm mini jack
Gain	0 dB
Volume	Input: -12 ~ +18dB, 6dB per step Output: -60 ~ 0dB, 1dB per step
Max Level	Input: +12 dBu @ 0dB input gain Output: +12 dBu @ 0dB output gain
S/N Ratio	> 90dB @ Max Level (A-weighted)
Output Noise	< -79 dBu @ 0dB gain (A-weighted)
THD	< 0.05% at 0dBu,1kHz, 0dB gain (A-weighted)
Sample Rate	44.1kHz or 48kHz
Control Methods	(1) Web-UI and Dante control (1) Pair button
Control Connector	(1) RJ45 (1) Bluetooth button
External Power Supply	PoE (IEEE 802.3af)
Operation Temperature	– 5℃ ~ + 55℃ (23℉ ~ 131℉)
Storage Temperature	– 25℃ ~ + 70℃ (-13℉ ~ 158℉)
Relative Humility	90% RH or less (No condensation)
Power consumption	4.22W (Max)
Dimension (WHD)	151 x 80 x 40 mm
Net Weight	265g
