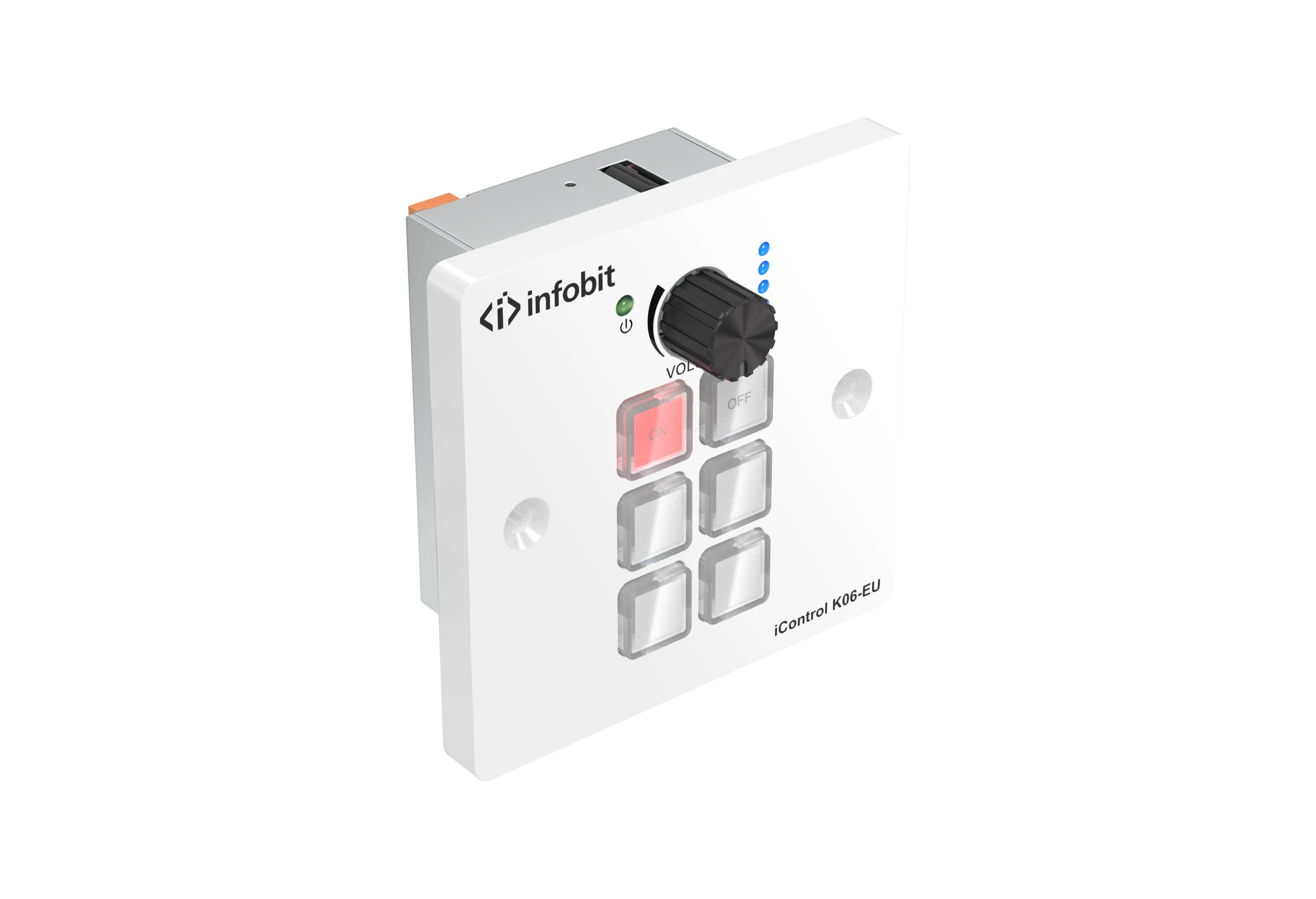

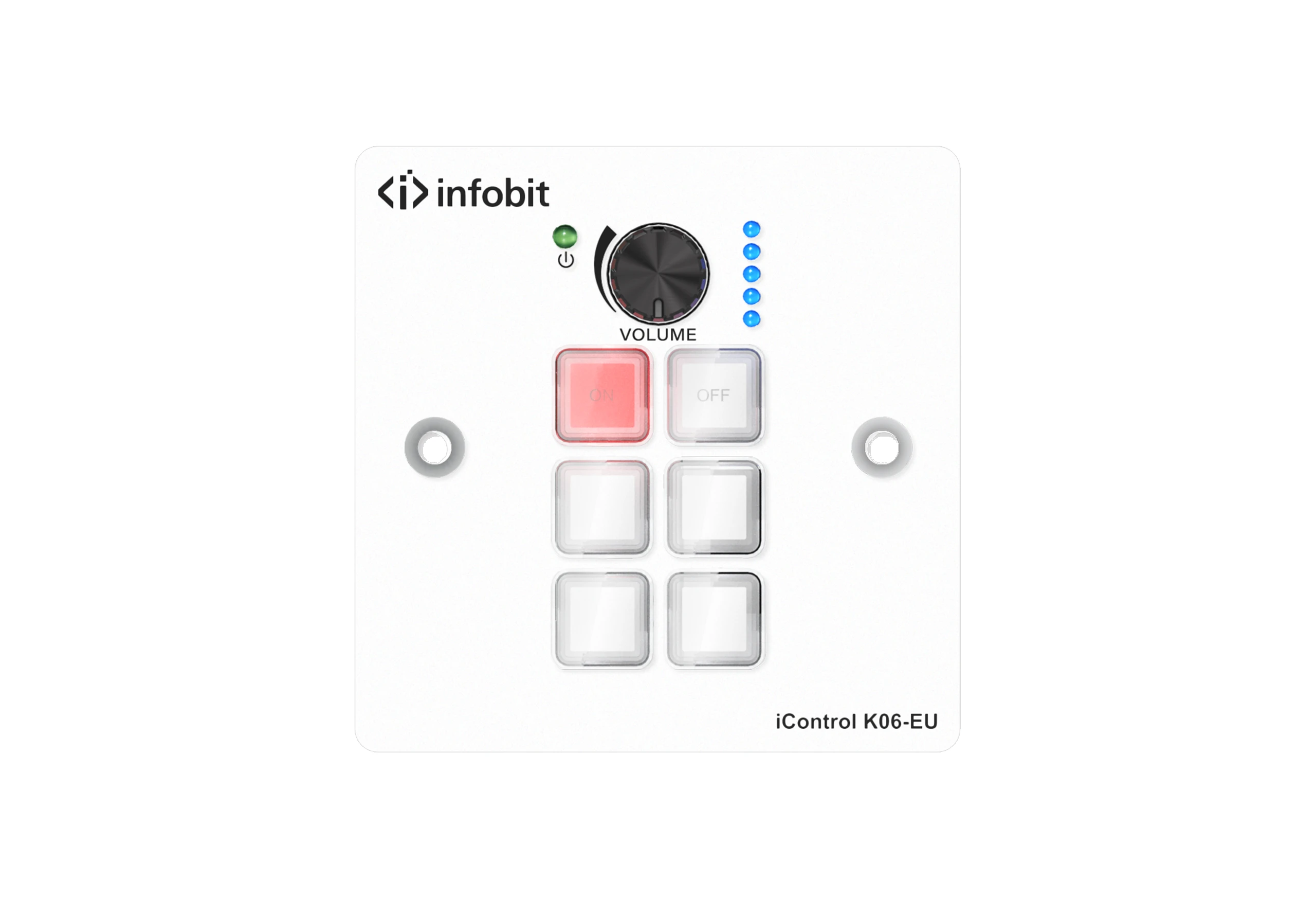

iControl K06-EU

6 Keys Control Keypad, US version

6x programmable backlit buttons with customizable label.

Each button’s color can be customized by the user.

1x volume control knob

2x RS-232, 2x IR and 2x Relay for control.

Support TCP/IP Control

Support IR learning function

Can be controlled and configured via user-friendly Web GUI

Can be powered by PoE

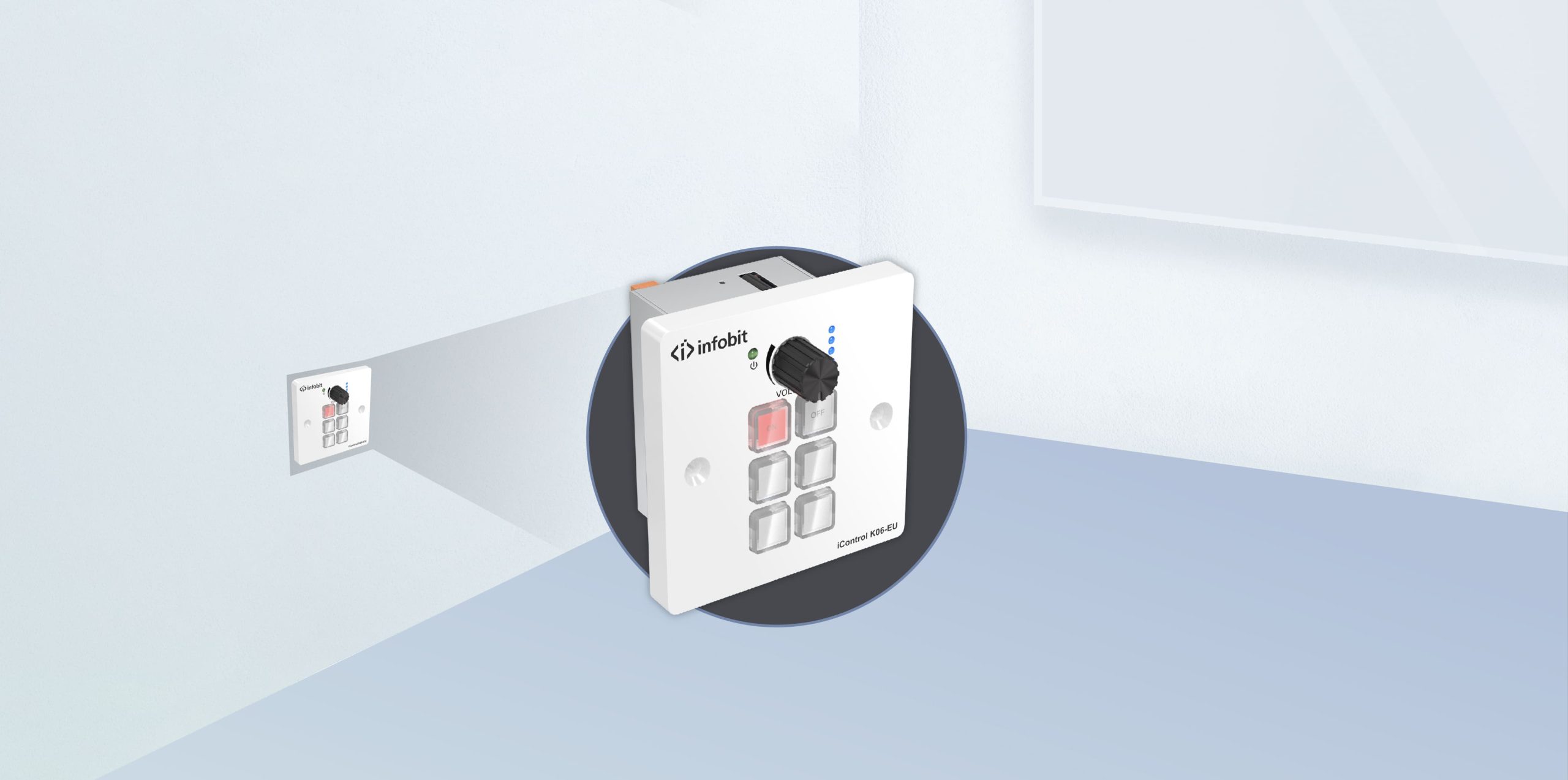

EU Wallplate version

Chat Now

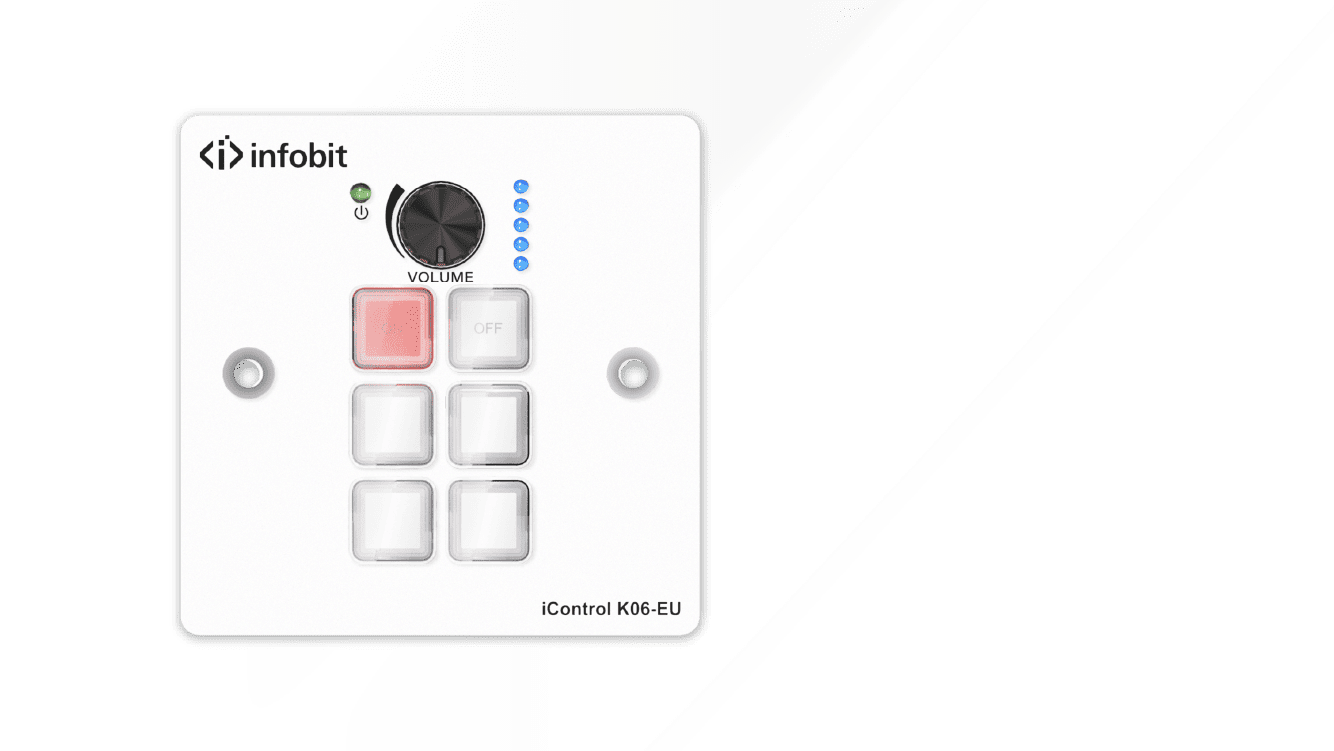

RGB illuminated buttons

Each button can be set to a specific true colour and
All buttons can be labelled using the supplied legend sheet
or own custom labels,
and protected with clear caps.

Datasheet

Model	iControl K06-EU
Name	6 Keys Control Keypad, EU version
Program Port	TCP/IP

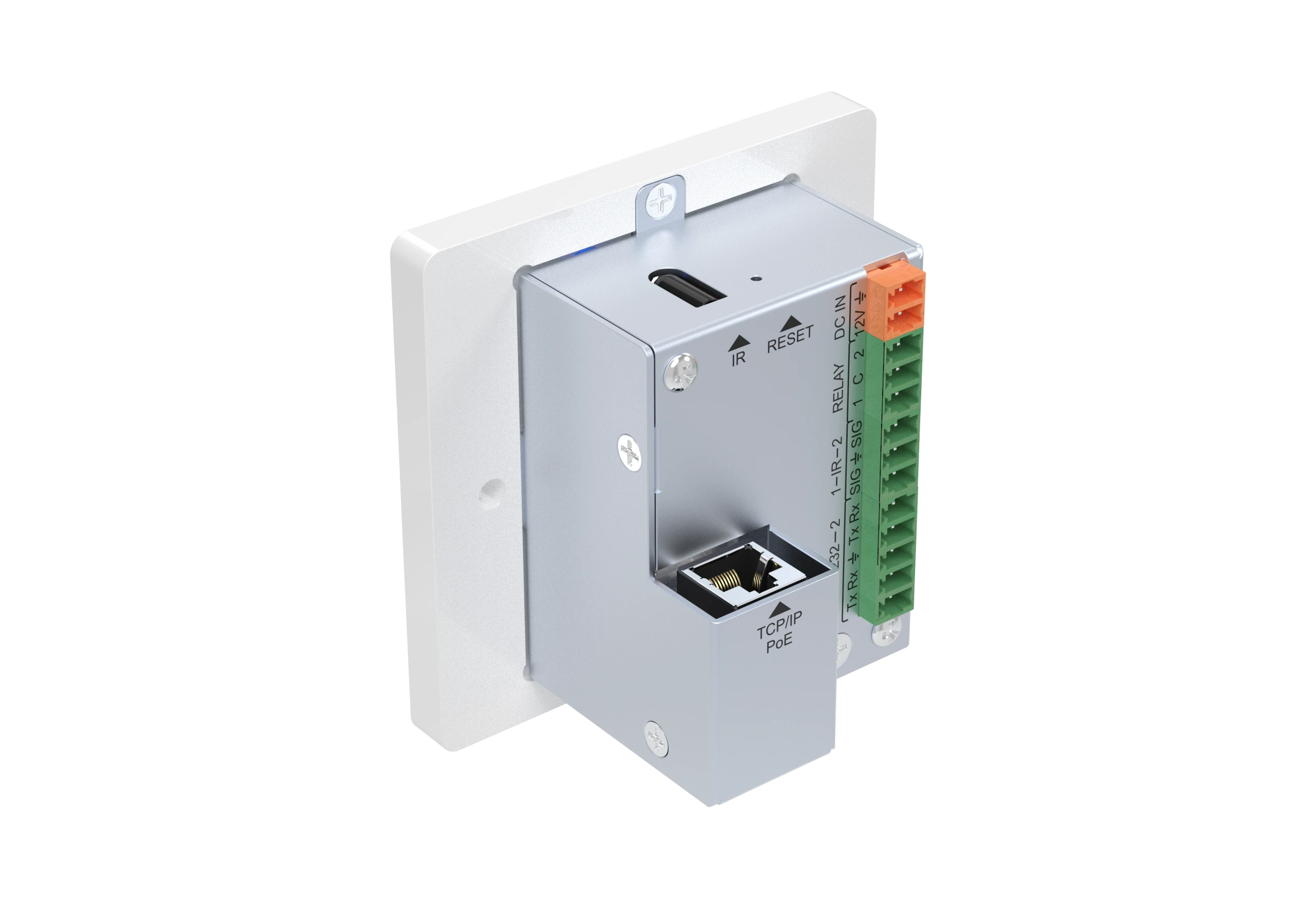

Output Port	2x RS232, 2x IR, 2x Relay
Output Connector	2x 3-Pin Pluggable terminal blocks, 2x 2-Pin Pluggable terminal blocks
Baud Rate	9600 baud, supports 9600, 19200, 38400, 57600, 115200
Power Consumption	2.5W (Max)
Operation Temperature	0 ~ +40℃
Storage Temperature	-10 ~ +55℃
Relative Humidity	10% ~ 90%
Power Supply	Input: 12VDC, PoE
Net Weight	215g
Case Dimensions	80mm x 80mm x 50.5mm, WHD

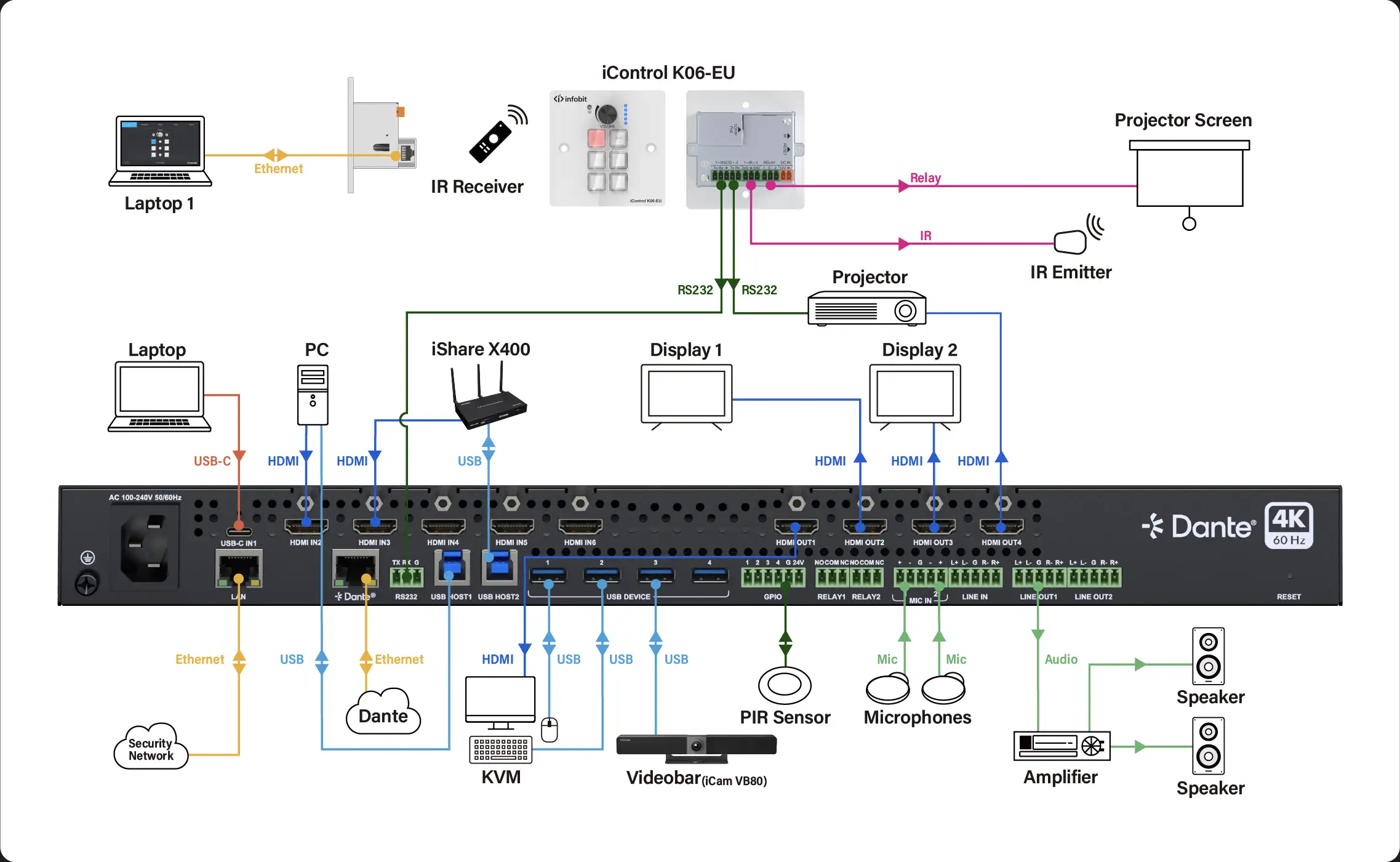

Diagram

Download

iControl K06-EU User Manual V1.0.pdf

5.52M

2026-01-05

Related Products

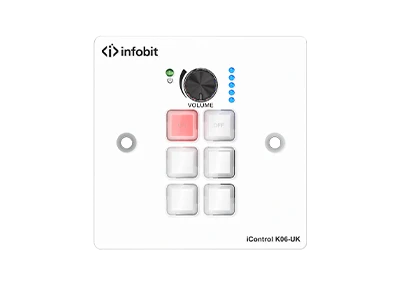

iControl K06-UK
