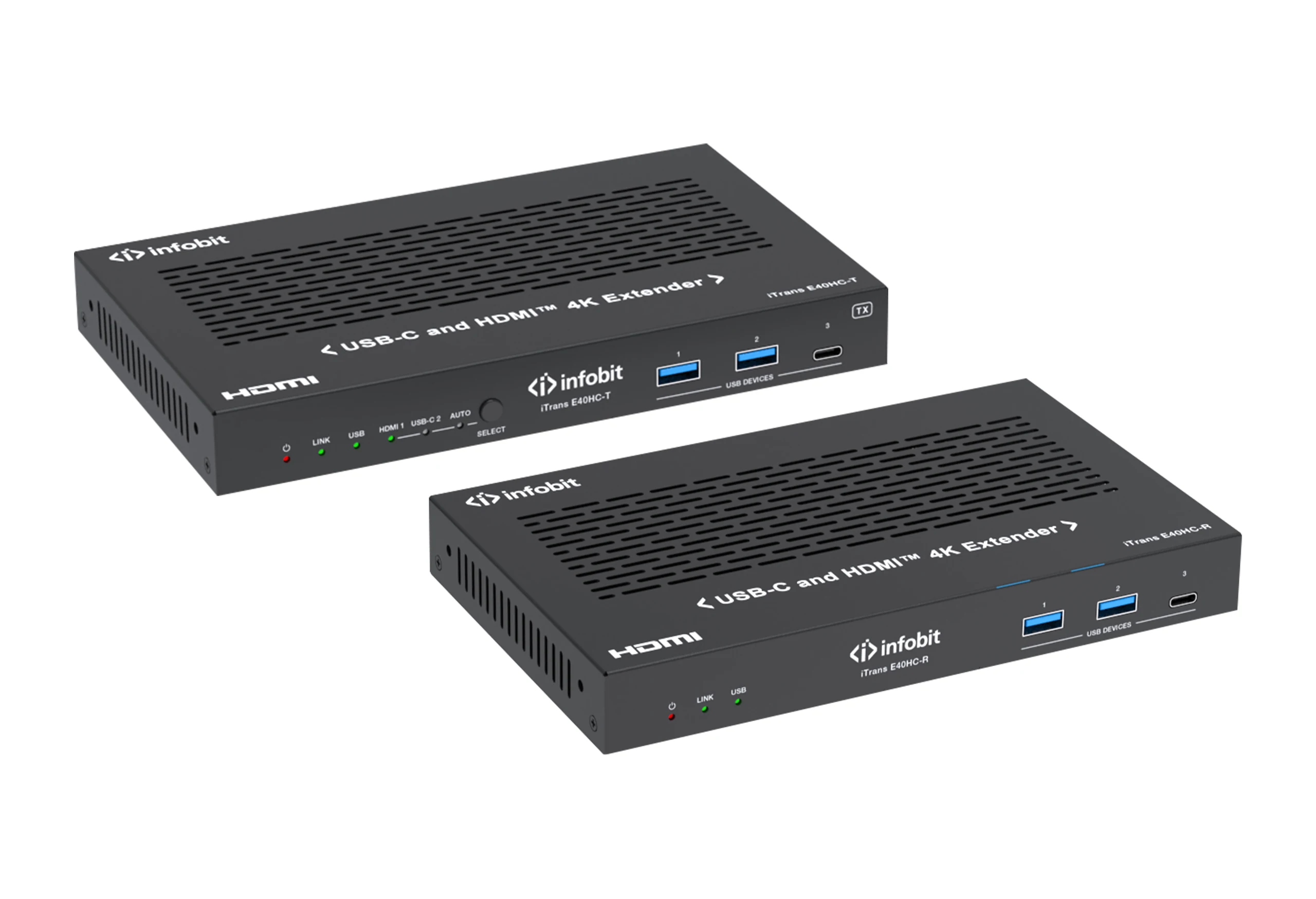

| Modell |
iTrans E40HC |
| Name |
5K USB-C & HDMI 40m UltraLink Extenders |
| Technische |
| USB-Protokoll |
USB 3.2 Gen 1 |
| HDCP-Konformität |
HDCP 2.3/1.x |
| HDMI™-Konformität |
iControl J10 তে মন্তব্যসমূহ |
| Übertragungsrate |
Up to 2.5Gbps |
| DP-Konformität |
DisplayPort 1.4a |
| HDMI™ Video Bandwidth |
18 Gbps |
| Videoauflösung (Eingang und Ausgang) |
640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz,
1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz,
720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59),
720x576i50Hz(576i50), 720x576p50Hz(576p50),
1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59),
1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50),
1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60),
1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24),
1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29),
1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50),
1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60),
2560x1080p60Hz, 3440x1440p60Hz, 3840x2160p23.98Hz(2160p23),
3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25),
3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30),
3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59),
3840x2160p60Hz(2160p60), 4096x2160p23.98Hz, 4096x2160p24Hz,
4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz,
4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz,
5120x2160p50Hz, 5120x2160p60Hz |
| HDR |
HDR, HDR10, HDR10, Dolby Vision, HLG |
| Farbtiefe |
8/10/12-bit, 8-bit (5K60Hz, 4:2:2) |
| Farbraum |
RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Audioformat |
HDMI™ IN/OUT, USB-C IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Analog Audio De-embedding: LPCM 2CH (sample rate 32~192kHz) |
| Übertragungsabstand |
Up to 40m/130ft for 4K and 35m/115ft for 5K via CAT6a (minimum required U/FTP 23AWG) cable;
1.5m/4.9ft via USB 3.2 Gen 1 5Gbps passive cable;
3m/9.8ft via HDMI™/USB-C passive cable |
| ESD-Schutz |
IEC 61000-4-2: ±8kV (Luftspaltentladung), ±4kV (Kontaktentladung) |
| Audio Parameters |
| Output Level (Max) |
8.2dBu(2Vrms) |
| Frequenzreaktion |
20Hz to 20kHz (±0.5dB) |
| Dynamischer Bereich |
>90dB@0dBu, 1kHz, A-weighted |
| Audio S/N-Verhältnis |
>90dB@0dBu, 1kHz, A-weighted |
| Audio THD N |
TBD |

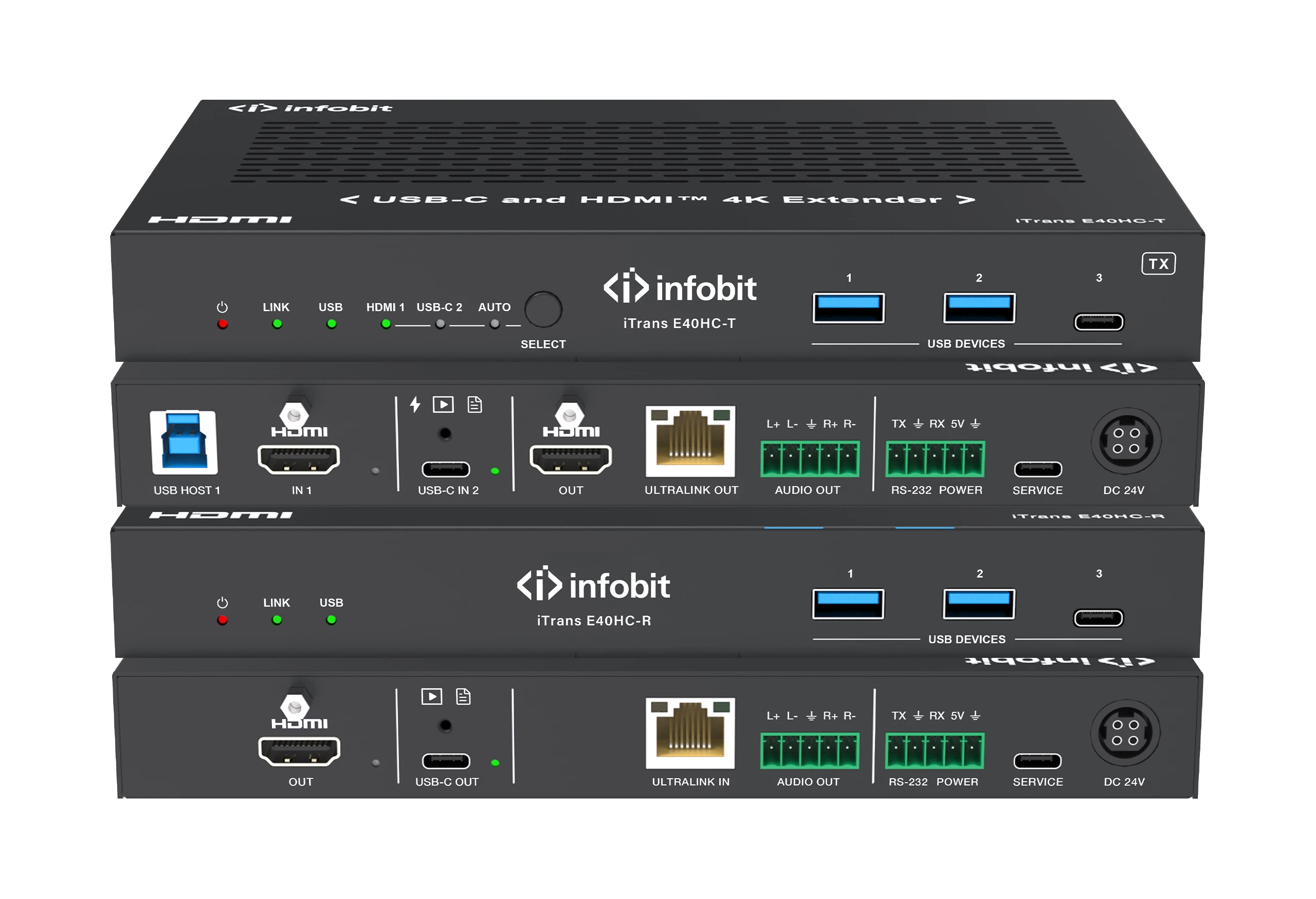

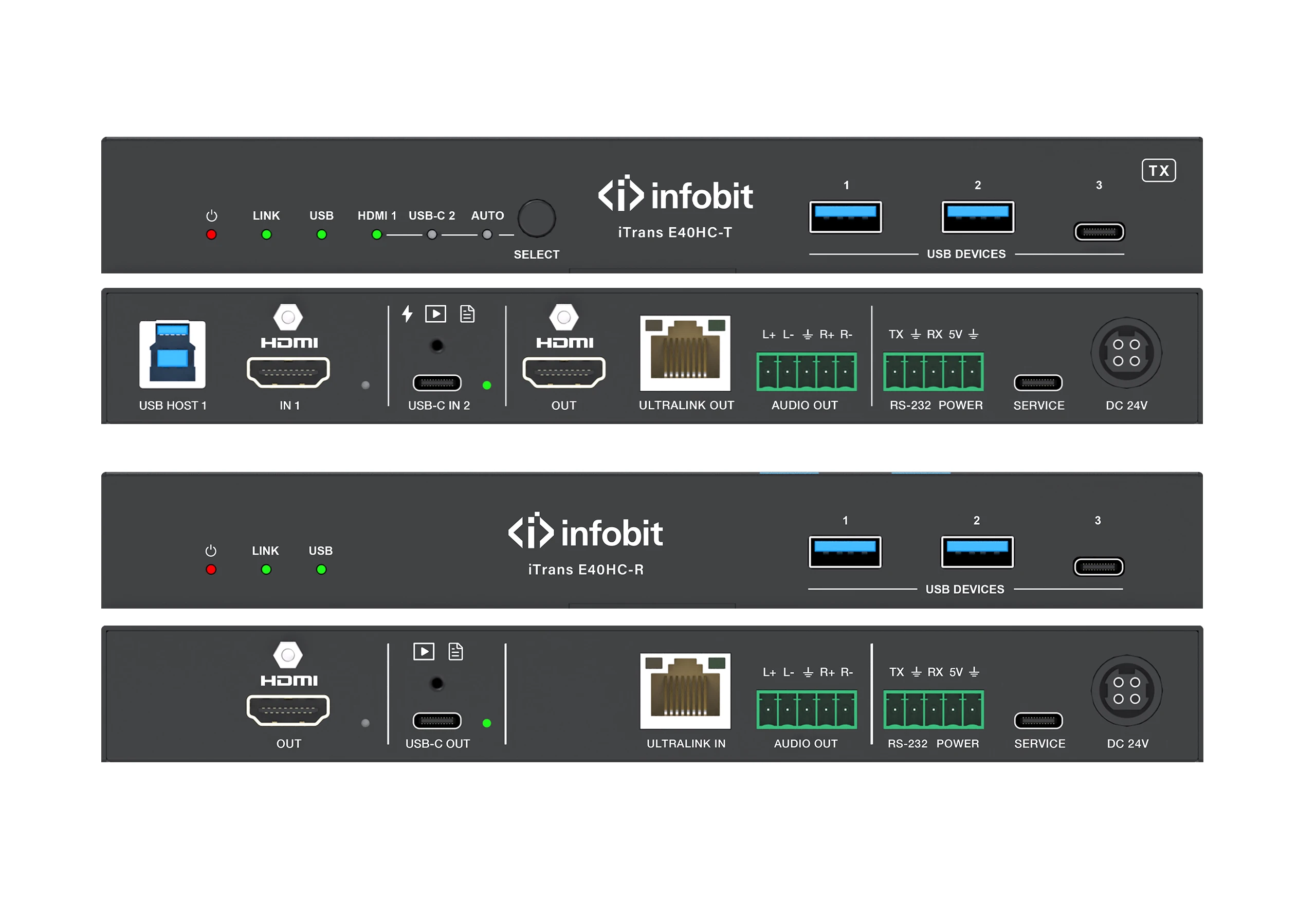

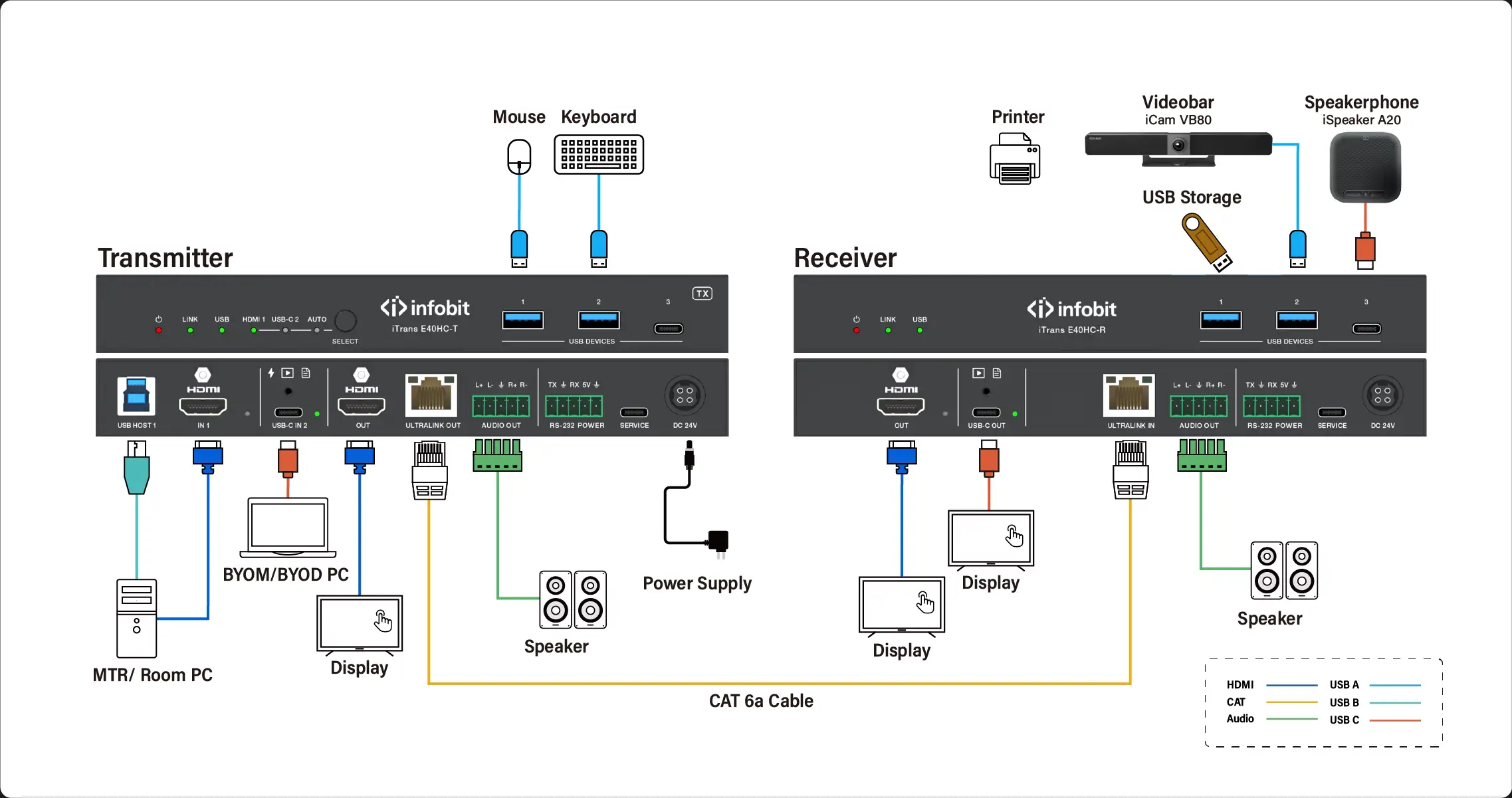

| Verbindungen |
| Sender |

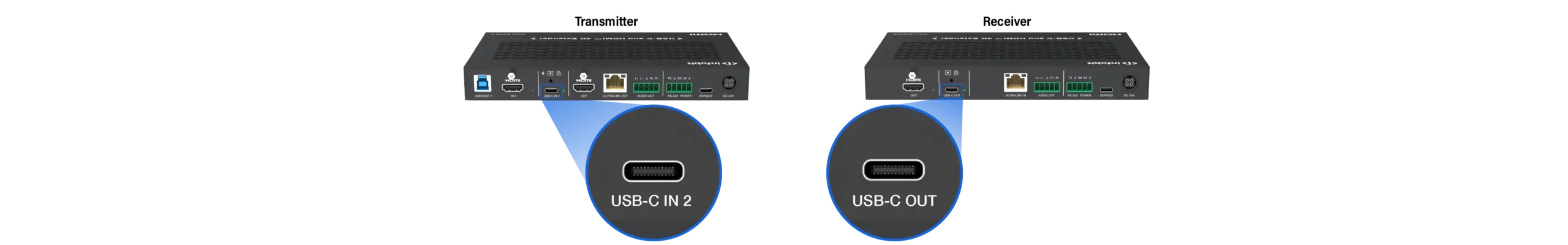

Input: 1× HDMI™ IN [HDMI™ type A, 19-pin female] 1× USB-C IN [USB-C, 24-pin female]
1× USB-B [Upstream, 9-pin female]
Output: 1× LOOP OUT [HDMI™ type A, 19-pin female] 1× AUDIO OUT [5-pin 3.5mm phoenix connector] 1× ULTRALINK OUT [RJ45 connector, 24V PoC]
2× USB-A [Downstream, 9-pin female] 1× USB-C [Downstream, 24-pin female]
Control: 1× RS-232 [5-pin 3.5mm phoenix connector] 1× SERVICE [USB-C, firmware update port] |
| Empfänger |
Input: 1× ULTRALINK IN [RJ45 connector, 24V PoC] Output: 2× USB-A DEVICE [USB-A, 9-pin female]
1× USB-C DEVICE [USB-C, 24-pin female]
1× HDMI™ OUT [HDMI™ Type A, 19-pin female] 1× USB-C OUT [USB-C, 24-pin female]
1× AUDIO OUT [5-pin 3.5mm phoenix connector] Control: 1× RS-232 [5-pin 3.5mm phoenix connector]
1× SERVICE [USB-C, firmware update port] |
| Mechanische |
| Wohnung |
Metallgehäuse |
| Farbe |
schwarz |
| Abmessungen |
Transmitter/Receiver: 200mm [W] × 120mm [D] × 25mm [H] |
| Gewicht |
Transmitter: TBD; Receiver: TBD |
| Stromversorgung |
Input: AC 100~240V 50/60Hz; Output: DC 24V/7.5A (US/EU standards, CE/FCC/UL certified) |
| Stromverbrauch |
TBD |
| Betriebstemperatur |
0 ° C ~ 40 ° C / 32 ° F ~ 104 ° F |
| Lagertemperatur |
-20 ° C ~ 60 ° C / -4 ° F ~ 140 ° F |
| Betriebsfeuchte |
20%~80% relative Luftfeuchtigkeit, nicht kondensierend |
| Lagerfeuchtigkeit |
10%~90% relative Luftfeuchtigkeit, nicht kondensierend |
