Transceiver configurable as an encoder (TX) or decoder (RX).
Supports HDMI input and output resolutions up to 3840 x 2160@60Hz 4:4:4 with HDCP 2.3 compliance.
يدعم الـ HDR10, HDR10+و دولبي فيجن.
Supports multi-channel audio, including PCM 7.1, Dolby Atmos, DTS-HD Master Audio, and DTS:X.
يدعم دانتي AV-A via firmware (not activated by default).
يدعم AES67 audio: AES67 with integrated Dante (Dante activation required)

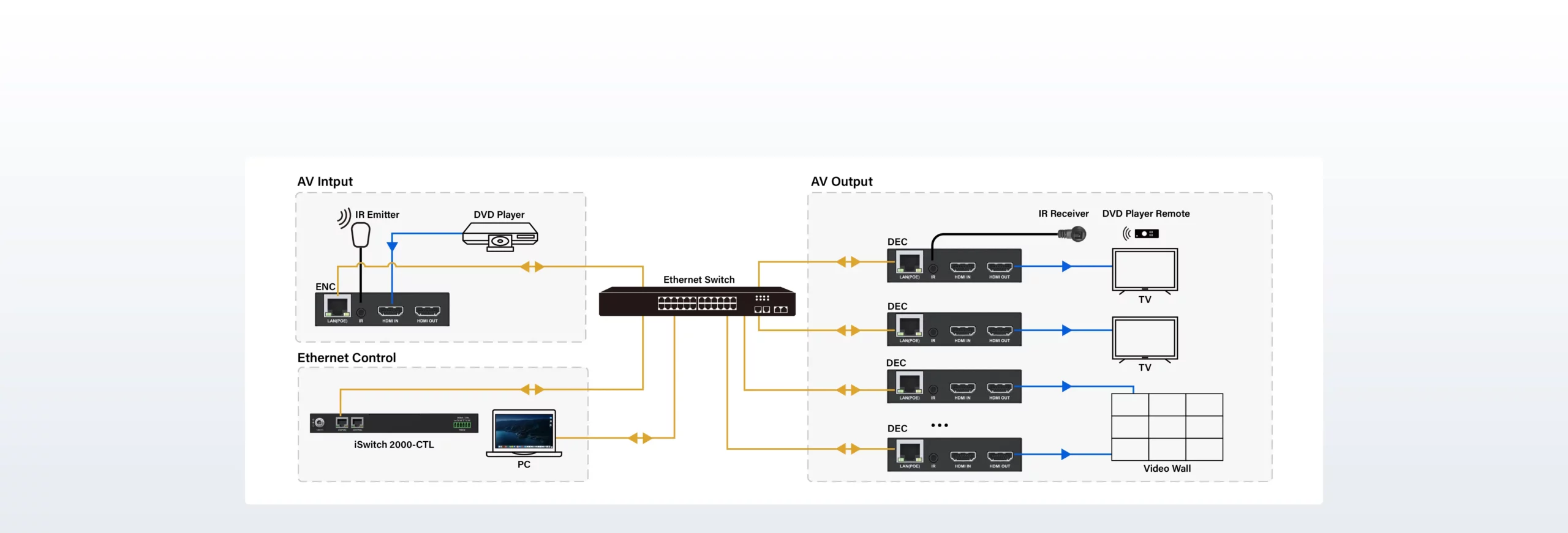

Flexible routing of AV, RS-232 و IR signals independently or together within the matrix system.
يدعم 1–frame latency, with Ultra Low Latency (ULL) mode as low as 4ms.
Transmits or receives signals over a single Cat 5e (or higher) cable up to 328ft (100m).
يدعم ثنائي الاتجاه RS-232 communication for device control or signal passthrough.
Provides a configurable الأشعة تحت الحمراء port for input and output, supporting IR control and passthrough.

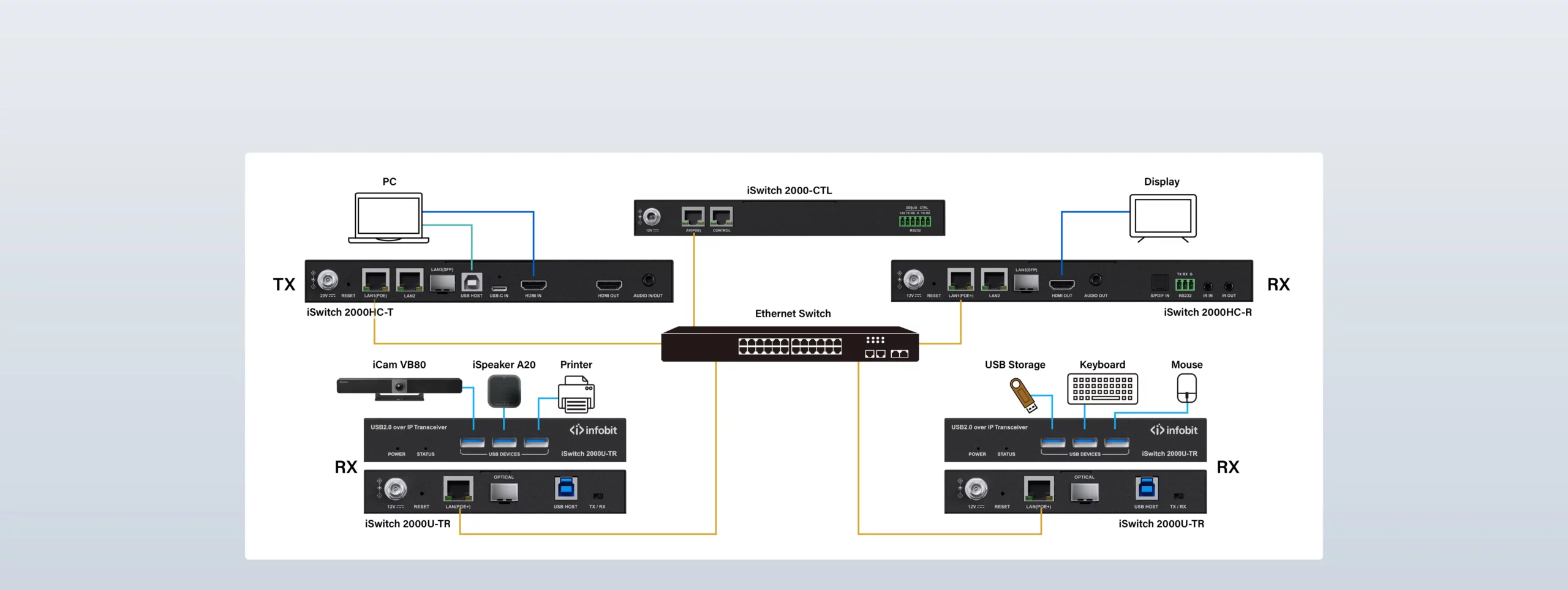

Interoperable with the iSwitch 2000U/ 2000HC series family for matrix routing and video walls.
يدعم PoE (802.3af) for power supply via a remote PoE-capable switch.
يدعم IEEE 802.1X authentication.
Compatible with the IP controller (iSwitch 2000-CTL) for centralized device management.
Supports fail-safe firmware upgrade to prevent device corruption during updates.
