iSwitch 2000-CTL AV over IP Controller

iSwitch 2000-CTL

Automatically discovers compatible encoders and decoders on the network.

Supports configuration and management of connected encoders and decoders.

Supports integration with external control systems.

Supports control of AV matrix Routing, Audio Return Routing, USB Routing, Standard/ Mosaic جدار الفيديو, متعدد المشاهدات, دانتي الصوت settings.

يدعم batch configuration of IP address, Video, Auido, Images, EDID, Firmware, Security, Control, log export.

يدعم واجهة المستخدم الرسومية للويب.

يدعم user management.

يدعم iSwitch 2000HC-T/ iSwitch 2000HC-R/ iSwitch 2000U-TR/ iSwitch 2000H-TR.

دردشة الآن

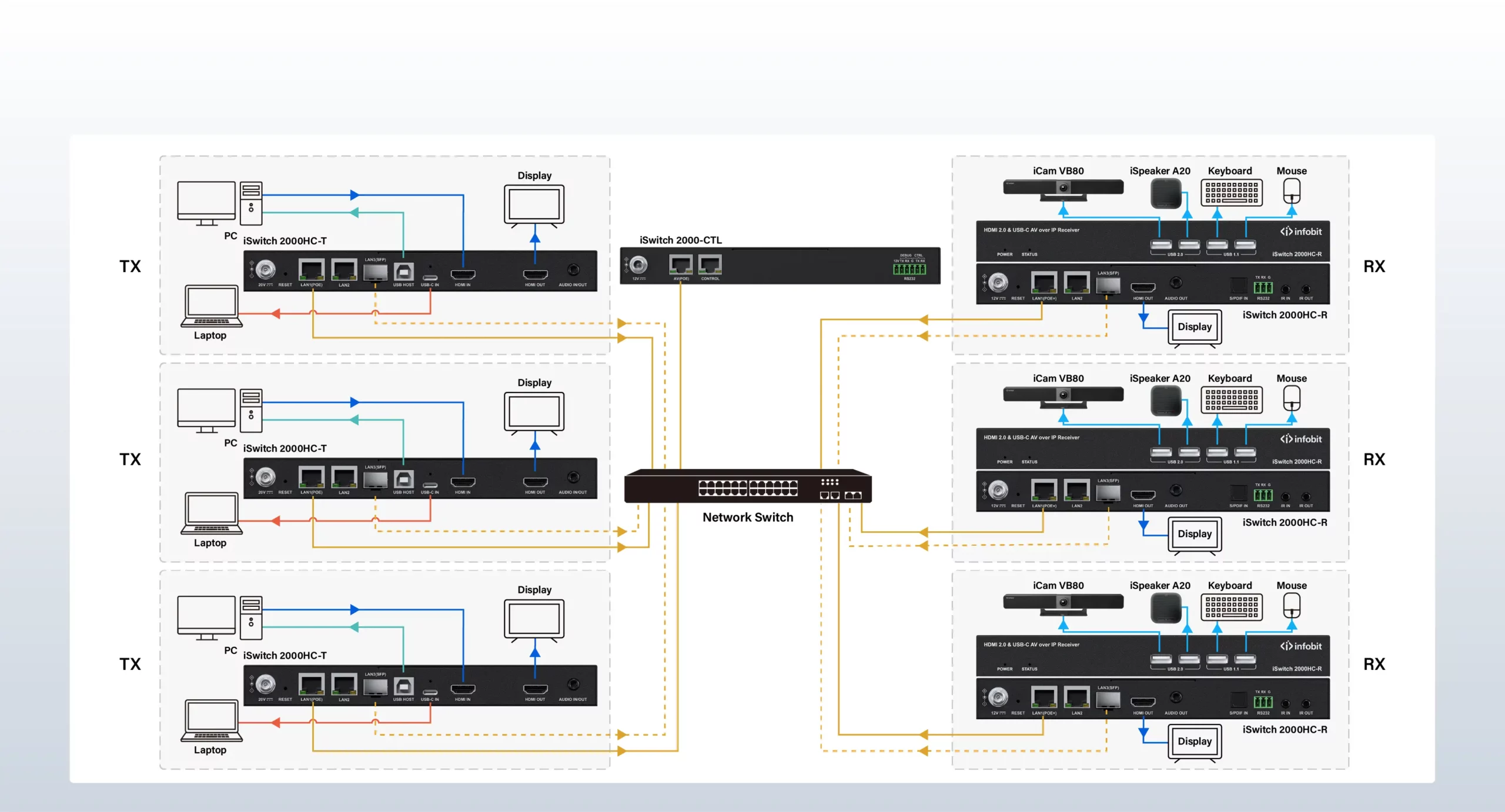

Control iSwitch 2000HC

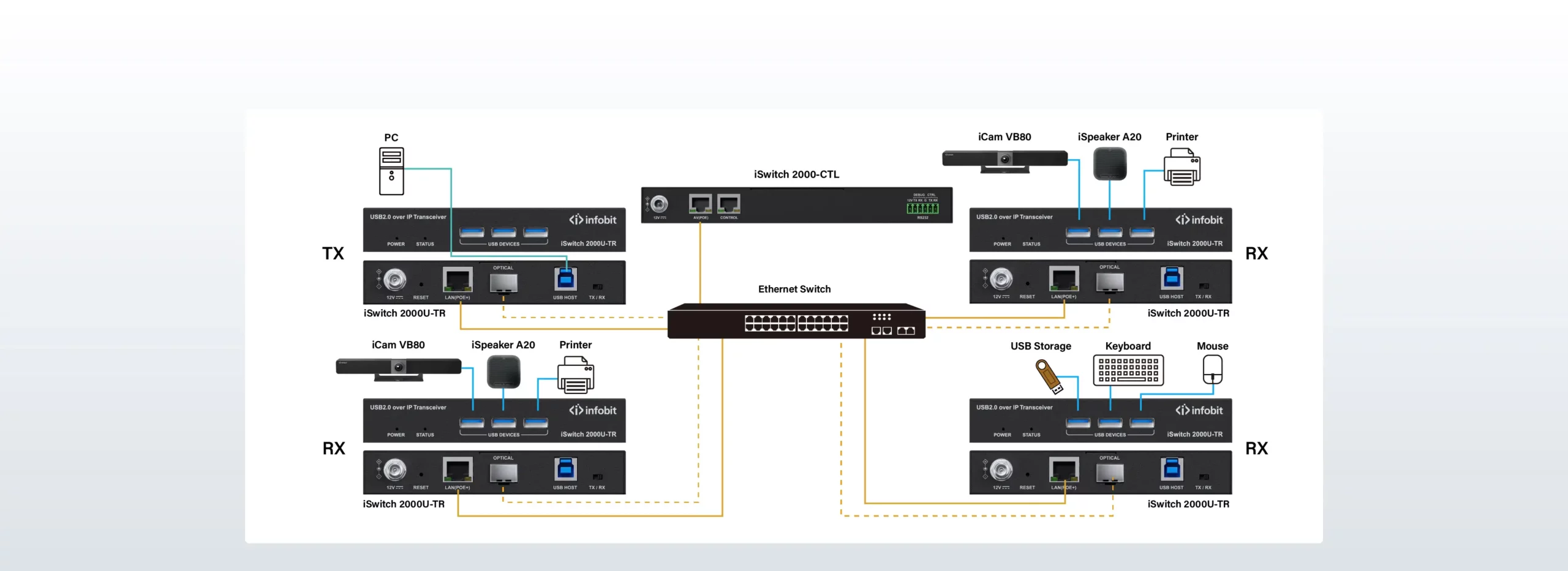

Control iSwitch 2000U-TR

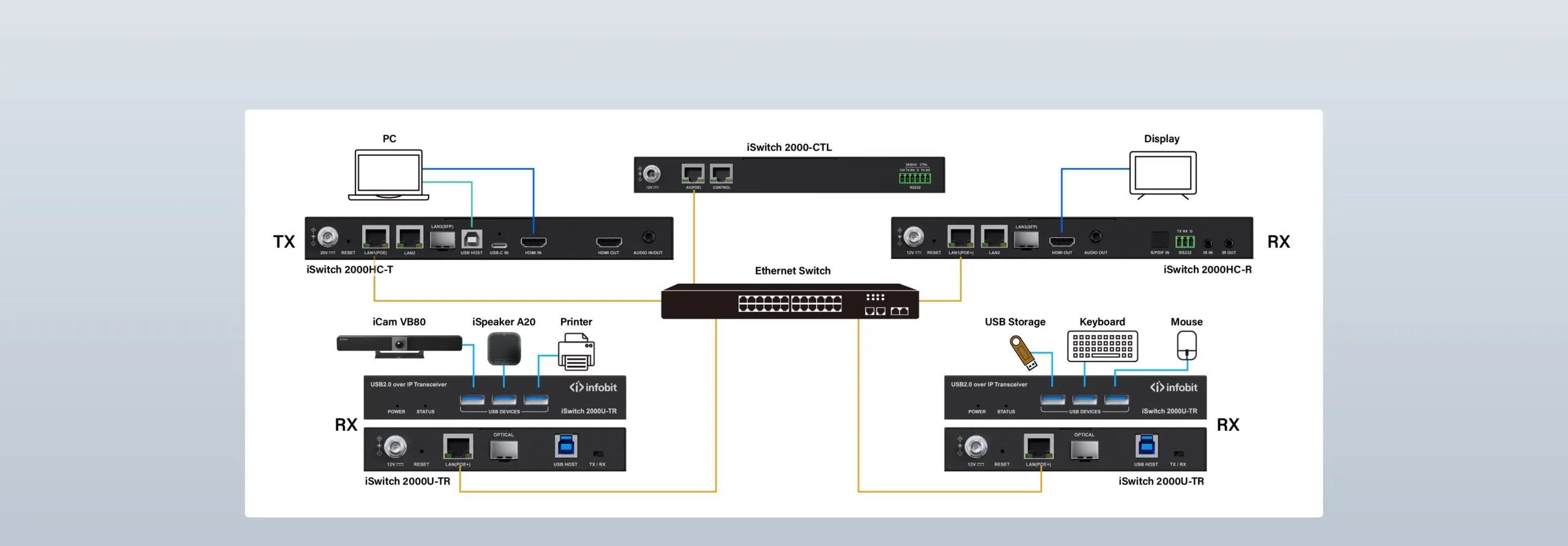

Control iSwitch 2000HC and 2000U-TR

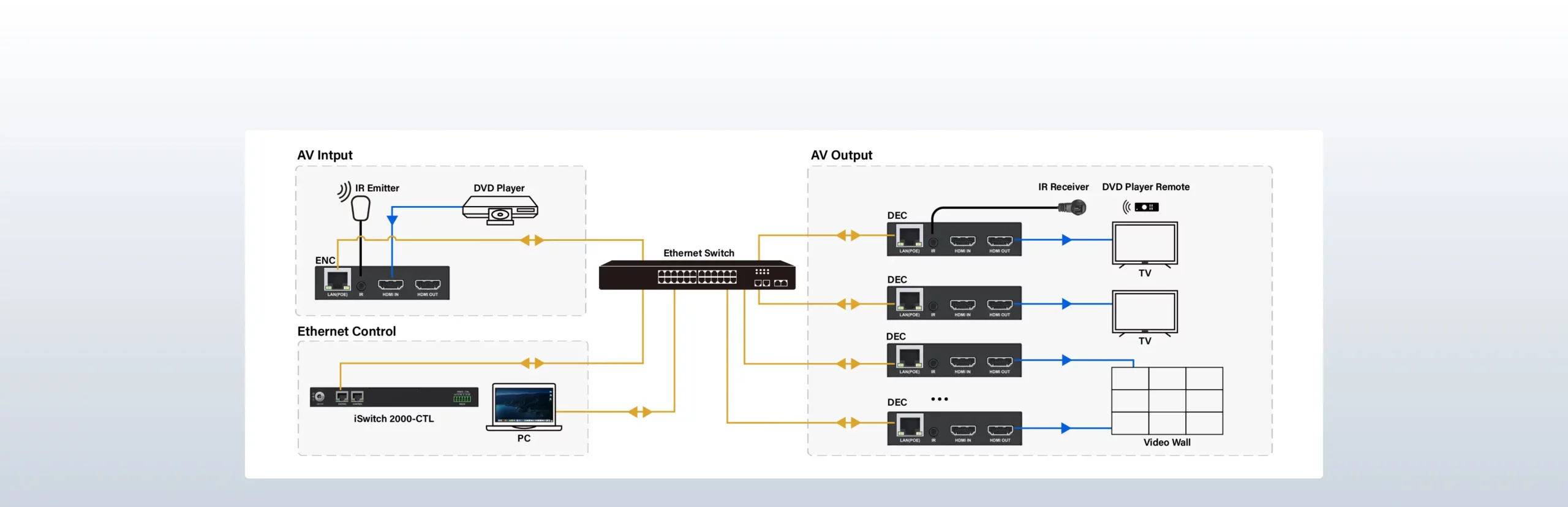

Control iSwitch 2000H-TR

ورقة البيانات

نموذج	iSwitch 2000-CTL
الاسم	AV over IP Controller
فيديو

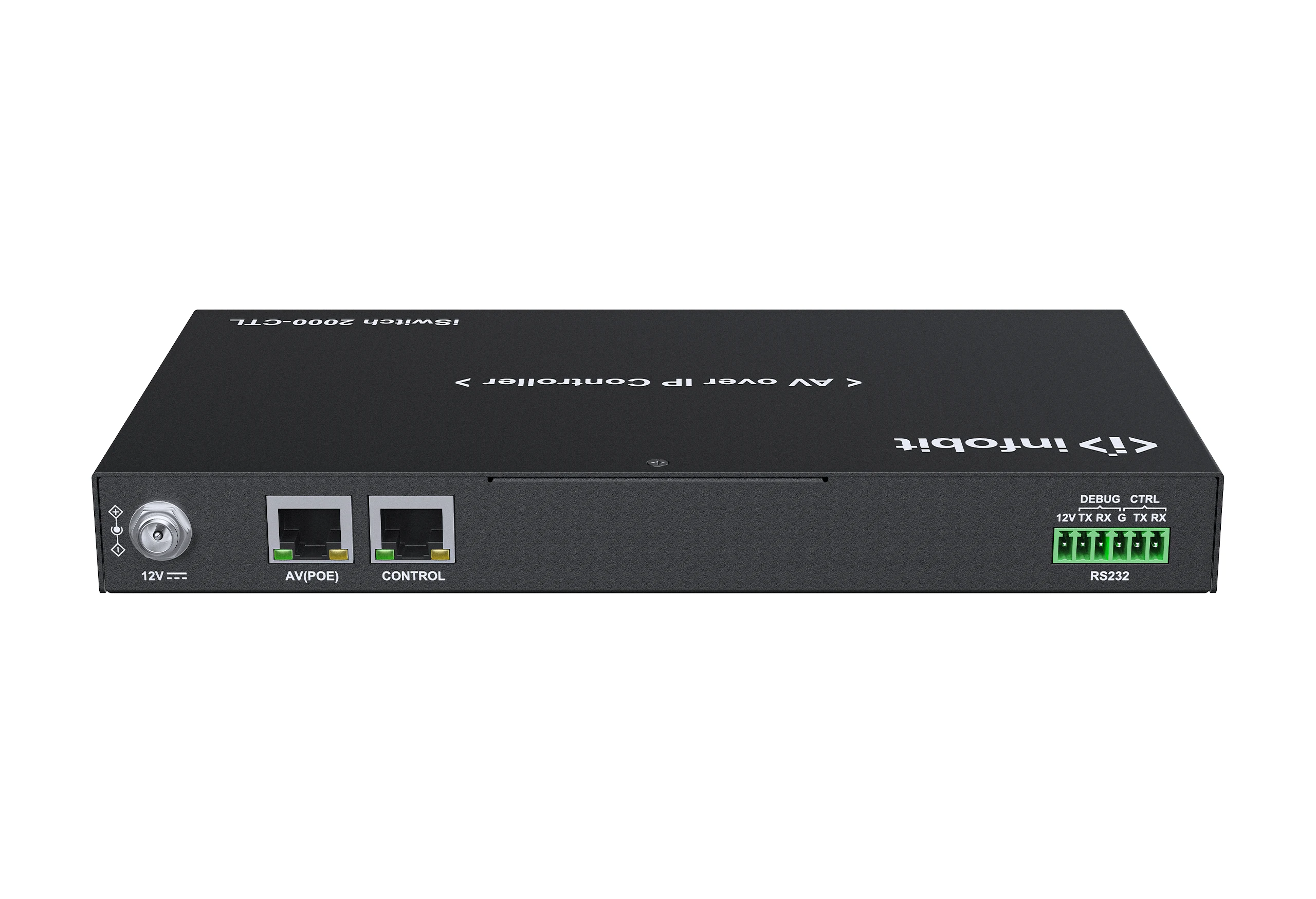

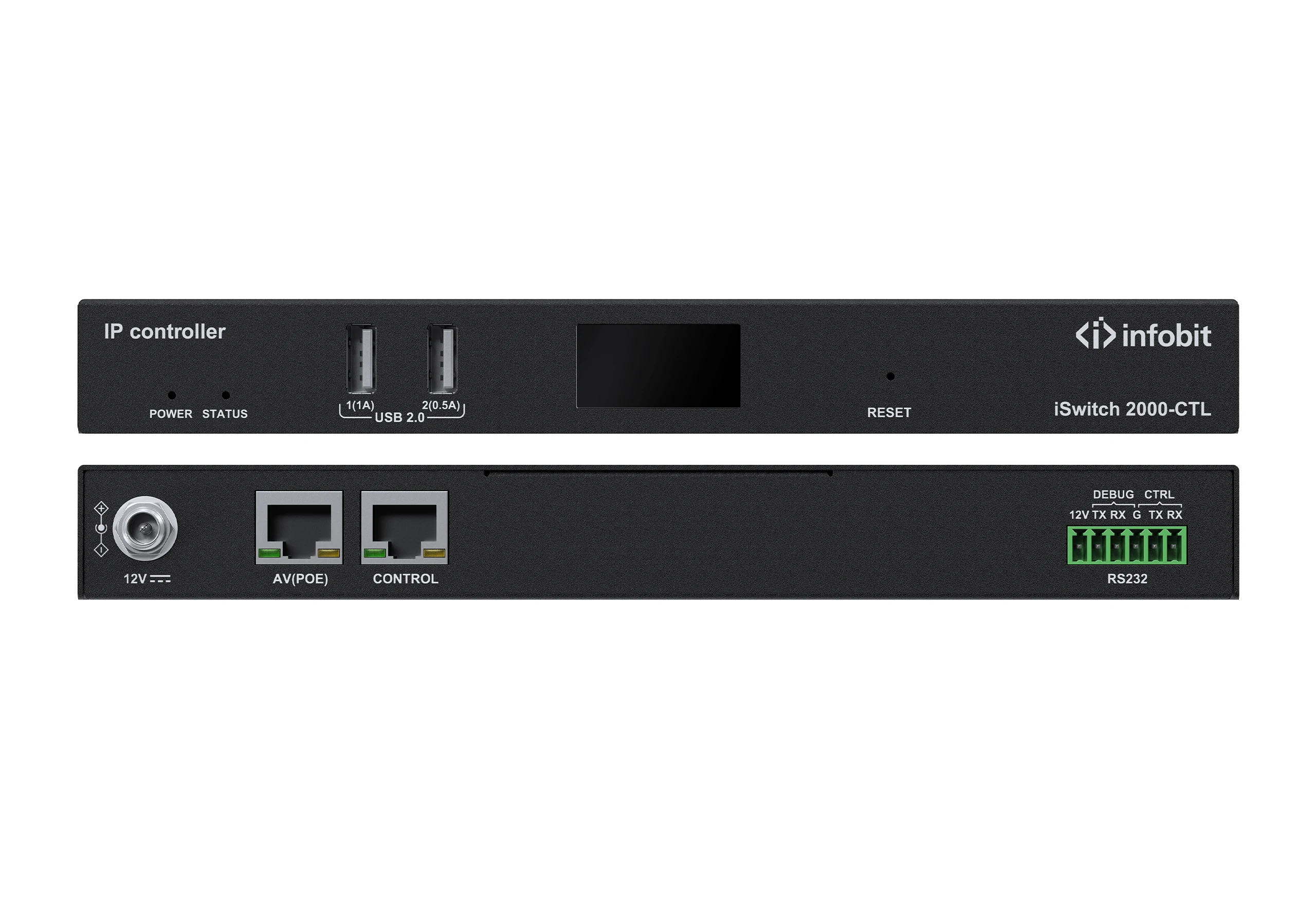

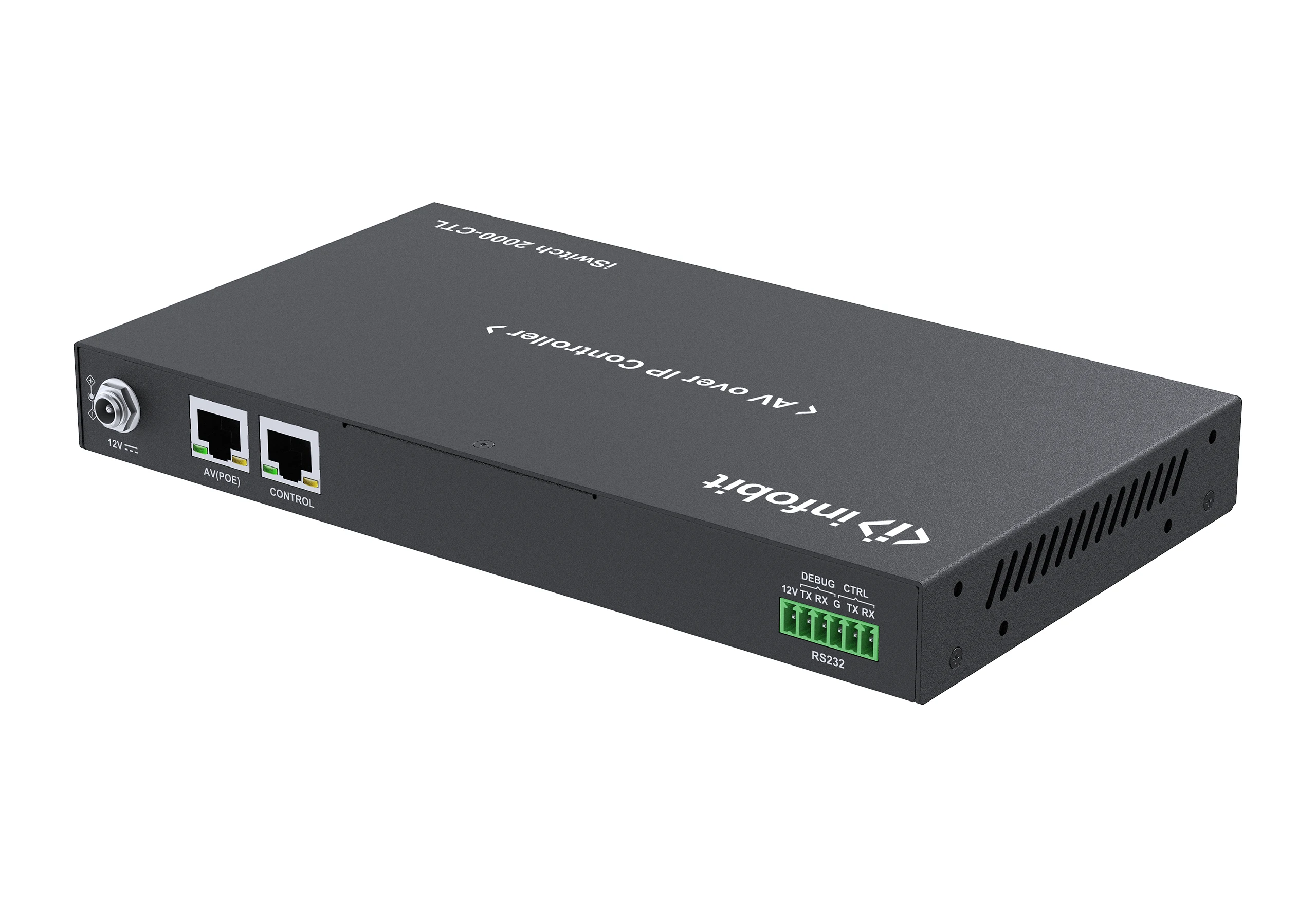

I/O Connections	1x AV(PoE) (10/100/1000 Mbps) 1x CONTROL (10/100/1000 Mbps) 1x RS232

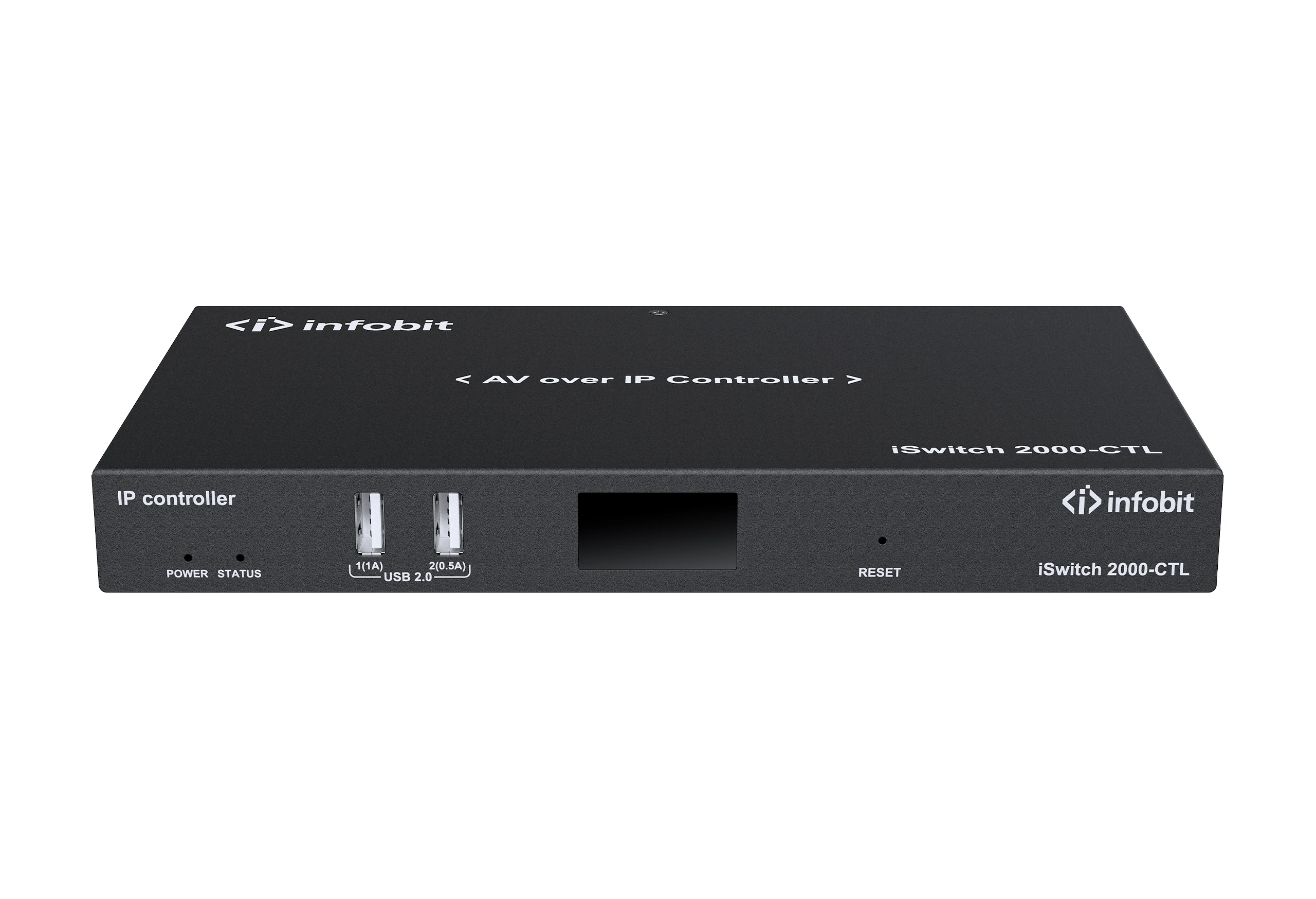

الصمام	1x POWER LED 1x حالة LED
زر	1x RESET Button
التحكم
طريقة التحكم	LAN (Web UI & Telnet), RS-232 and third party controllers
عامة
درجة حرارة التشغيل / الرطوبة	32°F – 113°F (0°C – 45°C), 10% – 90%, non-condensing
درجة حرارة التخزين / الرطوبة	-4°F – 158°F (-20°C – 70°C), 10% – 90%, non-condensing
حماية ESD	نموذج جسم الإنسان: ± 8kV (تفريغ الفجوة الهوائية) / ± 4kV (تفريغ الاتصال)
إمدادات الطاقة	12V DC 2A; PoE
استهلاك الطاقة	No load: 2.1W Max.: 8.9W (full load)
ابعاد الجهاز	8.46” x 0.98” x 4.73” (215 mm x 25 mm x 120.2 mm) (W x H x D)
الوزن الصافي	1.50lbs (0.68kg)
To control	iSwitch 2000HC-T/ iSwitch 2000HC-R/ iSwitch 2000U-TR/ iSwitch 2000H-TR

تحميل

iSwitch 2000-CTL Hardware Datasheet V1.0.pdf

0.56M

2026-08-14
iSwitch 2000-CTL Hardware User Manual V1.0.pdf

0.96M

2026-08-14
iSwitch 2000-CTL Web UI Configuration Guide V1.0.0.pdf

5.04M

2026-08-14
