Transmitter features: (iSound NL200T, NL200H)

Adopts NearLink 2.4G wireless technology.

Adopts the advanced RISC-V chipset.

Zero range anxiety, 4 hours of Lithium battery life.

With a fast-charging case, continuously charge the microphone more than three times.

Compact design, with a diameter of 32mm and a thickness of 13.8mm.

Ultra-lightweight design, only 10.5g.

Two wearing styles (lavalier and headwear with magnetic accessories) can be freely switched; interaction is easier.

Multi-room use eliminates crosstalk (any microphone can be paired with any receiver).

One teacher/ lecturer equipped with one microphone, clean and hygienic.

Simple operation, only one Power-ON button.

Optional accessories include magnetic headwear and an external antenna.

Receiver features: (iSound NL200R)

86 type (UK) box design, easy to install.

DSP audio processing with built-in Acoustic Feedback Cancellation, Automatic Gain Control, Adaptive Noise Suppression, and Room Acoustic Calibration algorithms.

Automatic frequency pairing via NFC automatically disconnects after powering off.

Supports UAC digital and analog output.

iSound NL200
iSound NL200
iSound NL200
iSound NL200
iSound NL200
iSound NL200
 Lavalier Microphone
Lavalier Microphone
< Discreet Audio Precision >
The iSound NL200 lavalier microphone is a small,
hands-free device designed for clear speech capture.
The compact microphone clip directly onto a speaker’s clothing,
making them nearly invisible on camera.
 Dropping Microphone
Dropping Microphone
< More Natural-looking >
Omnidirectional Consistency: It allows the mic to hang freely,
maintaining a steady pickup pattern
regardless of the speaker's head movements,
resulting in more natural-looking dialogue.
 Headworn Microphone
Headworn Microphone
< Maximum Gain Before Feedback >
Consistent Audio Levels: Since the capsule stays at a fixed distanc
from the mouth, the volume remains perfectly stable
even if the speaker turns their head.
 Long Distance
Long Distance
< Extreme Mobility and Range >
High-end systems can maintain clear signals
at distances of 30 metres or more,
allowing presenters and performers to roam freely
through large venues or conference hall.
 Classroom or Conference Hall
Classroom or Conference Hall
The iSound NL200 is a high-performance audio solution
that bridges the gap between active teachin
and professional corporate communication.

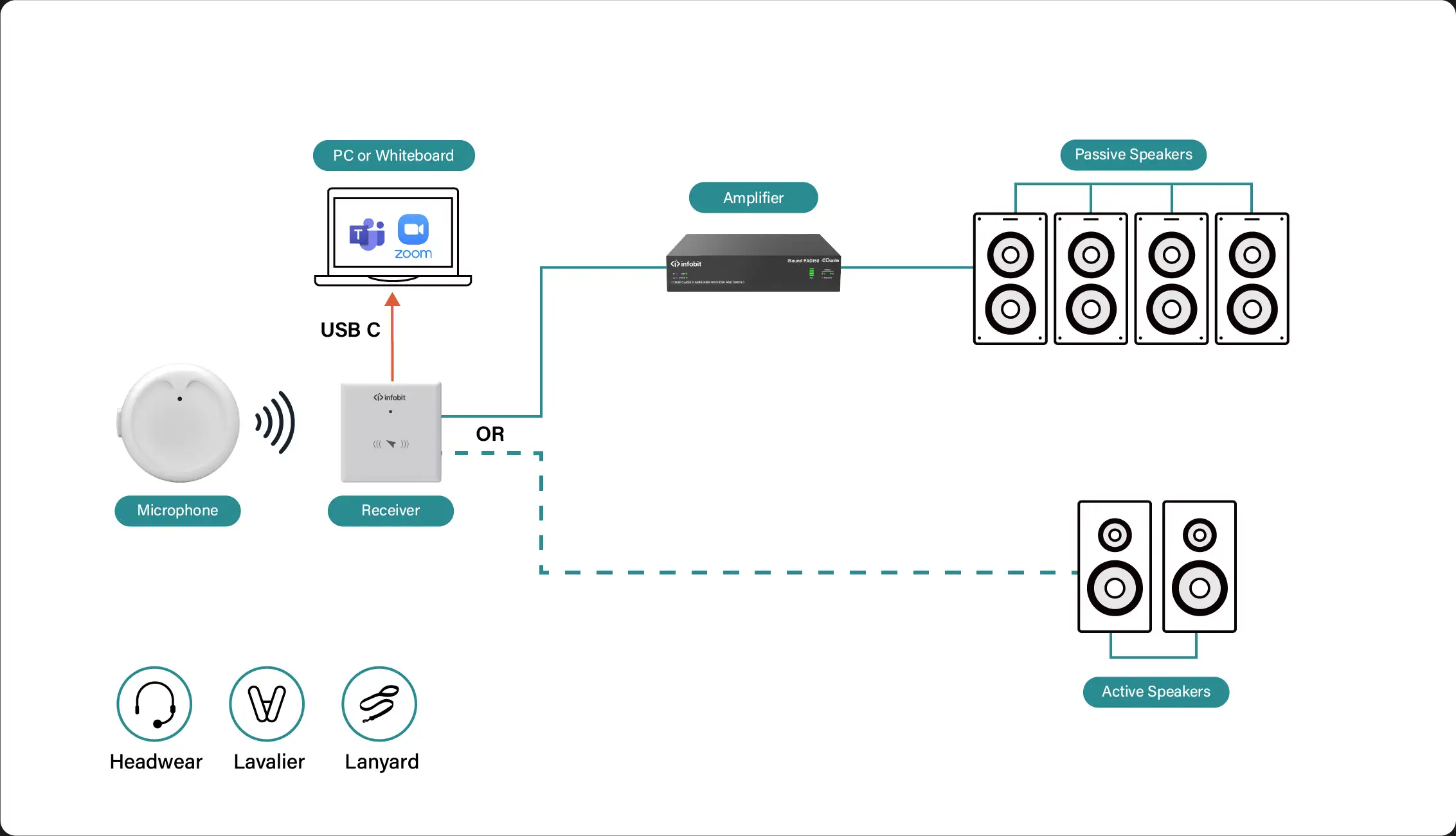

 Connect to Active Speakers
Connect to Active Speakers
 Connect to Power Amplifier
Connect to Power Amplifier
 Reduced
Reduced "Range Anxiety"
4+ hours of power allows the speaker and the technical team to
focus on the presentation rather than constantly checking battery indicators.
ورقة البيانات
Transmitter (iSound NL200T)
Transmission Mode 2.4G NearLink SLE protocol
Polarity Mode متعدد الاتجاهات
Operating distance (without obstacles) 30 meters
RF Output Power 10dBm
استجابة التردد 100Hz~20kHz
معدل العينة 48 كيلوهرتز
عمق البت 16-bit
نسبة الإشارة إلى الضوضاء ≥80dB
Built-in Battery Capacity 97mAh
Power supply mode Built-in lithium battery power supply, or USB-C charging.
Battery life About 4 hours
Charging time About 1 hour
الوزن 10.5g
البعد 32mm×32mm×13.8mm
Operating Temperature and Humidity 0℃~50℃, 10%~90%RH, No condensation
Charging Case
سعة البطارية 300mAh
Power Supply Method Power supply via charging contacts
Power Supply Times to TX >3 times
Charging Time About 1 hour
الوزن 39g
الأبعاد 60.3mm×50.1mm×28.4mm
Operating Temperature and Humidity 0℃~50℃, 10%~90%RH, No condensation
Receiver Parameters
Transmission Mode 2.4G NearLink SLE protocol
Operating Distance (without obstacles) 30 Meters
RF Output Power 10dBm
استجابة التردد 100Hz~20kHz
معدل العينة 48 كيلوهرتز
عمق البت 16-bit
نسبة الإشارة إلى الضوضاء ≥80dB
انتاج الصوت UAC digital;
Balanced analog (Phoenix terminal);
Unbalanced analog (3.5mm TRS)
إمدادات الطاقة DC 12V or USB Type-C Powered
الوزن 30g
البعد 86.1mm×86.1mm×27.3mm
Operating Temperature and Humidity 0℃~50℃, 10%~90%RH, No condensation
درجة حرارة التخزين -10℃~50℃
Package Dimensions (L×W×H) 280mm×210mm×70mm
Package Weight 0.5kg
NearLink SLE Spec
الإصدار SLE 1.0
عرض النطاق الترددي Max. 4Mbps
Operating Frequency 2.4GHz ISM (2402~2480MHz)
معدل النقل Max. 12Mbps, 6x times of Bluetooth (2Mbps)
Delay 0.25ms, 1/20 to 1/28 of Bluetooth 5.3.
Band Code Polar
Anti-interference capability Utilizes Adaptive Frequency Hopping (AFH) technology to enhance anti-interference performance.
الأمن AES-128
