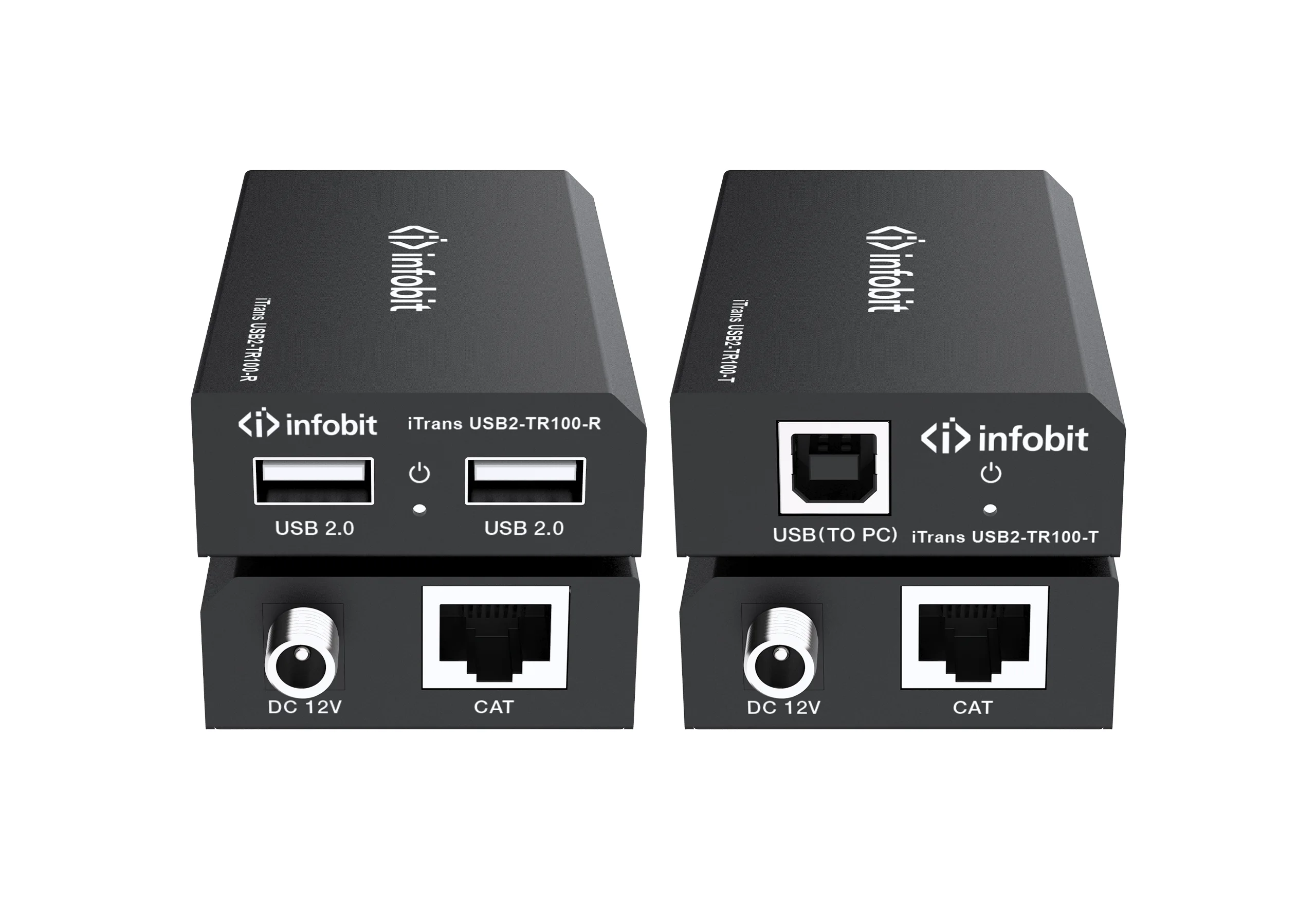

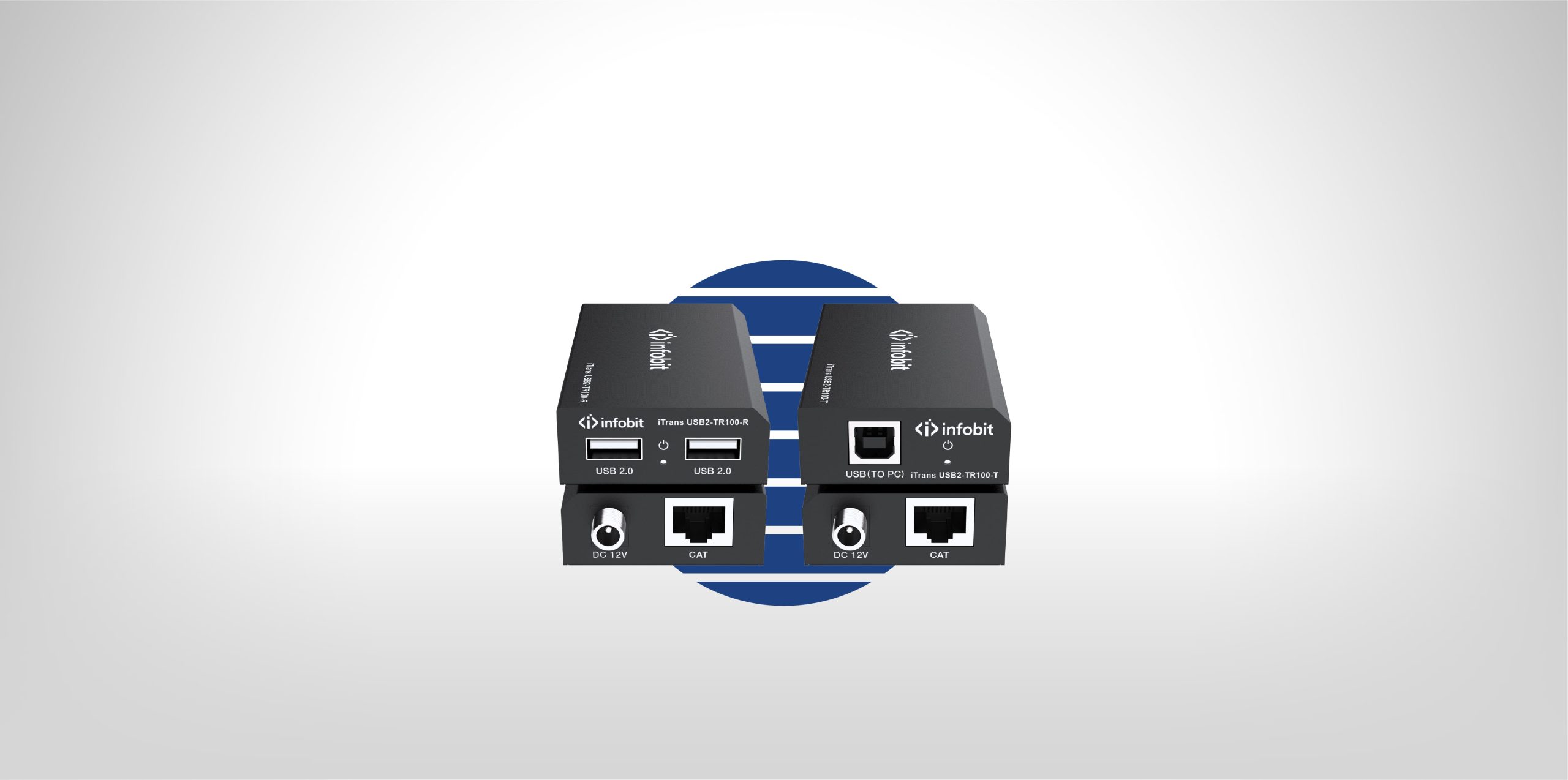

iTrans USB2-TR100

Supports USB 2.0 protocol, transmission rate up to 480Mbps

Supports extend distance up to 100 meters / 328ft via CAT 5e/6 cable

Supports one USB-B port input in the transmitter

Supports two USB 2.0 ports output in receiver

Supports the PoC function, which means that either the transmitter or receiver is connected to a powered supply by a 12V/1A power adapter

Simple plug and play, no drive and setting installation required

Compact design for easy and flexible installation

Chat Now

Datasheet

Technical
USB protocol	USB 2.0
Transmission rate	Up to 480Mbps
Transmission distance	100M (328ft)
ESD Protection	Human-body Model：±8kV (Air-gap discharge) , ±4kV (Contact discharge)

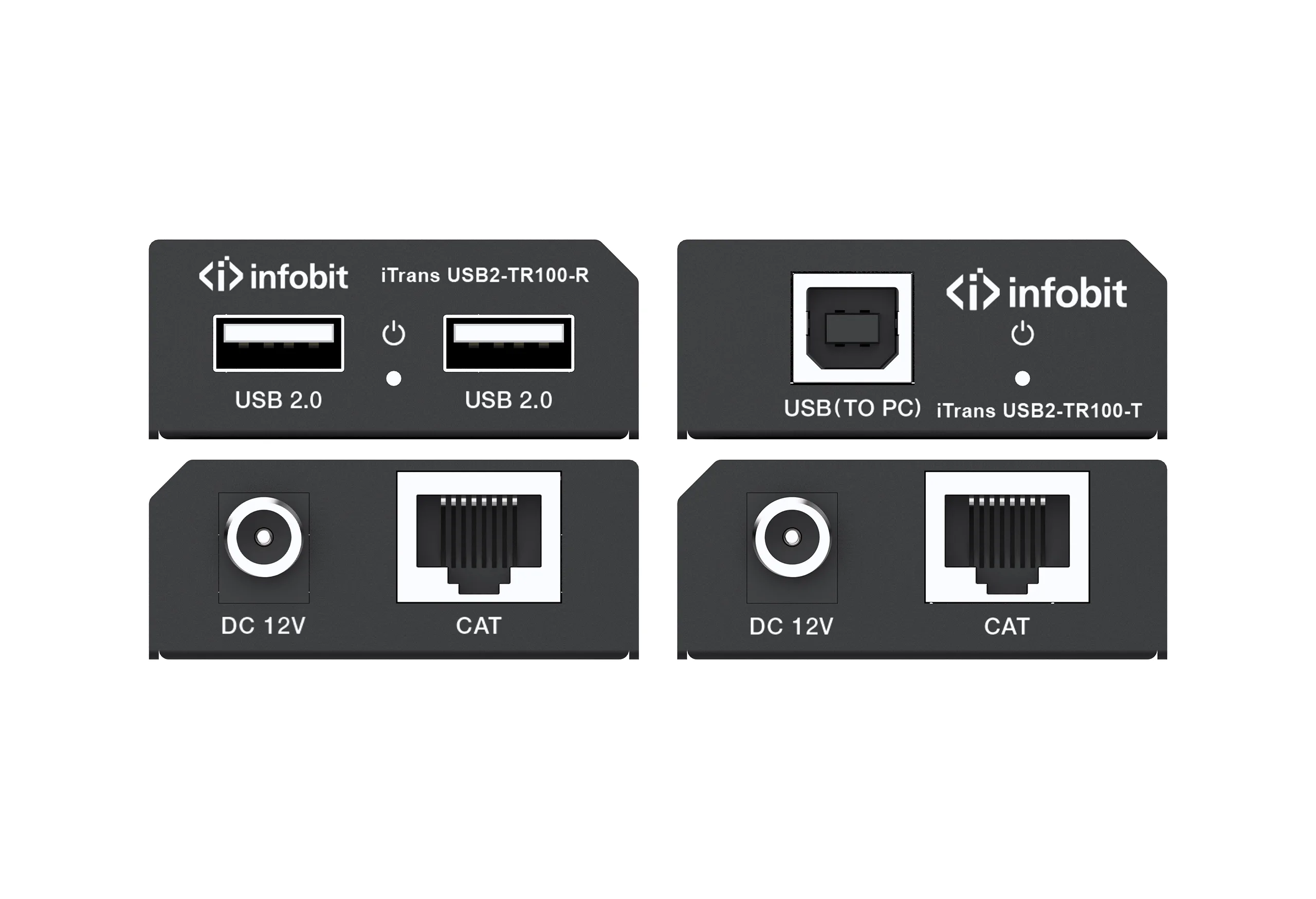

Connections
Transmitter	Input port: 1×USB [USB-B, female] Output port: 1×CAT [RJ45, female]
Receiver	Input port: 1×CAT [RJ45, female] Output port: 2×USB [USB-A, female]

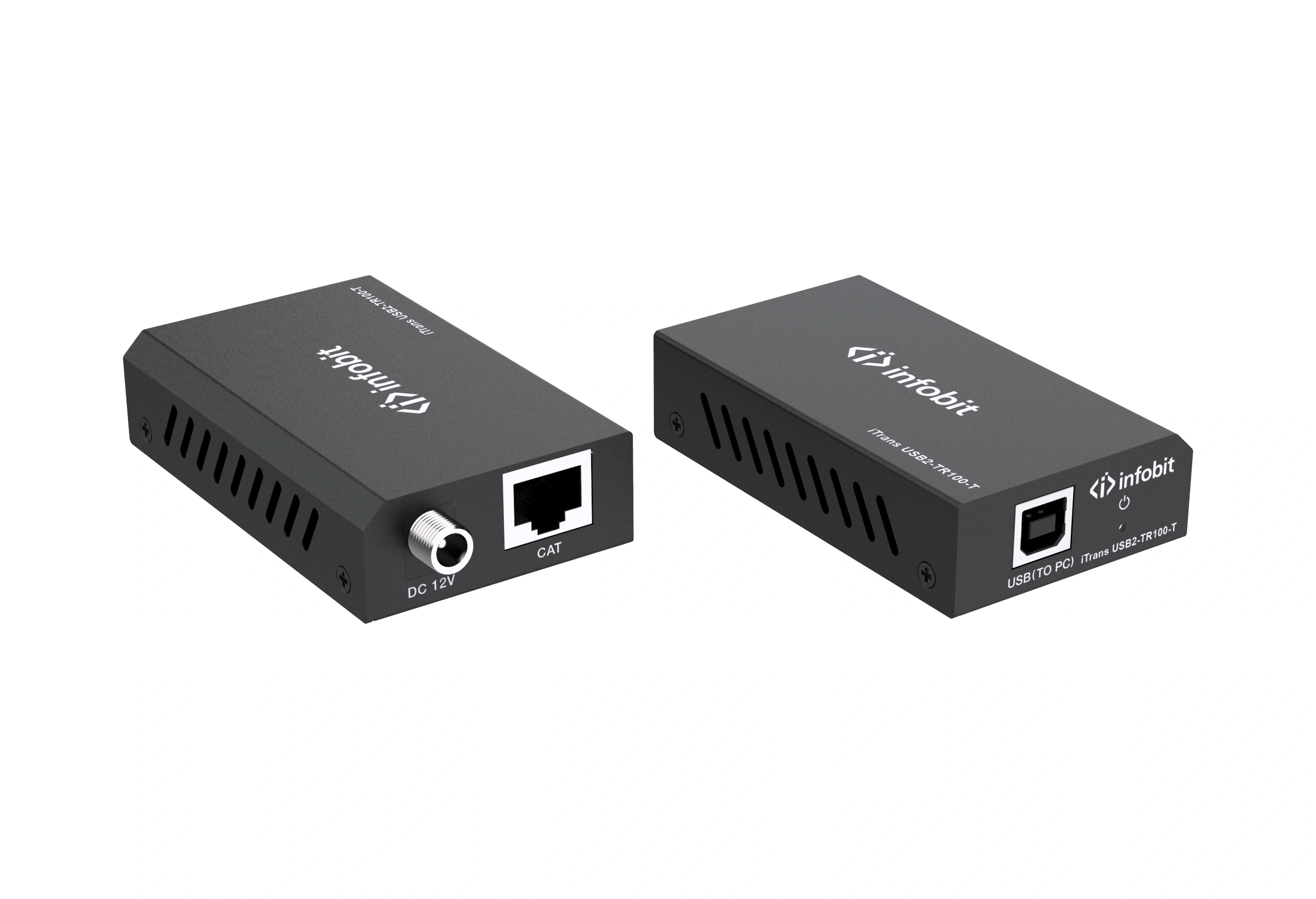

Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver: 82mm (W)×49mm (D)×20mm (H)
Weight	Transmitter / Receiver: 100g
Power Supply	Input: AC100~240V 50/60Hz, Output: DC 12V/1A
Power Consumption	Transmitter: 1.3W, Receiver: 2.3W
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20~90% RH (non-condensing)

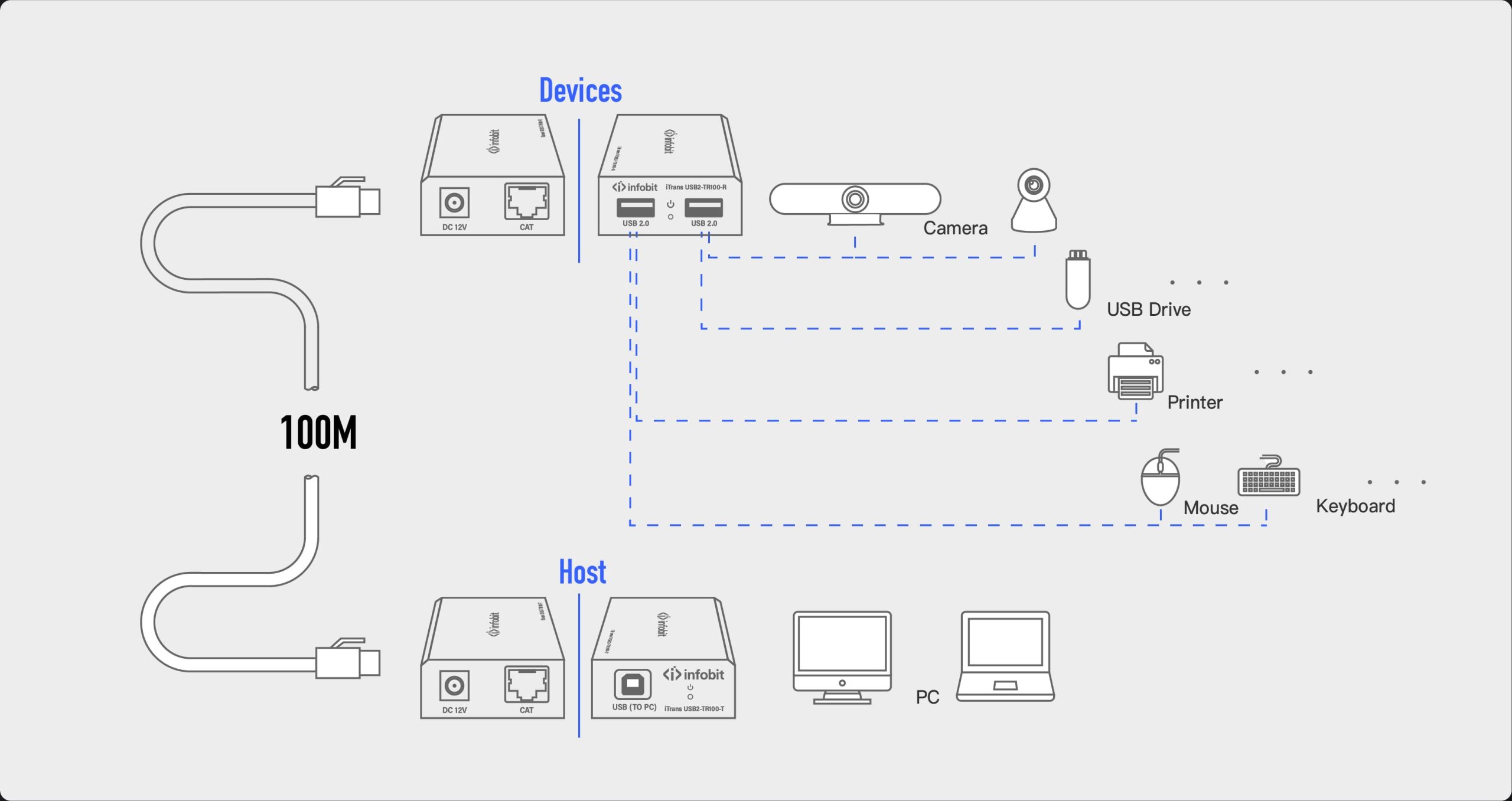

Diagram

Dowload

iTrans USB2-TR100 User Manual V2.0.pdf

1.24M

2025-12-01
