USB transceiver configurable as either transmitter or receiver.

High-speed USB 2,0 transmission over Gigabit Ethernet.

Functions as a local USB hub supporting USB 3.2 Gen 2 in Transmitter mode.

Apoia PoE 802.3at (PoE+) for power supply via a remote PoE-capable switch.

Apoia point-to-multipoint connection: up to 7x remote USB peripherals can be associated with 1x transmitter in USB over IP (USBoIP) mode.

Unlimited number of associated keyboards and mice in Keyboard Mouse Over IP (KmoIP) mode.

Interoperable with the iSwitch 2000H/ 2000HC series family, providing an efficient and cost-effective solution for USB 2.0 signal extension.

Apoia 1x authentication.

Integrates with the IP controller (iSwitch 2000-CTL) for device management.

iSwitch 2000U-TR
iSwitch 2000U-TR
iSwitch 2000U-TR
iSwitch 2000U-TR
iSwitch 2000U-TR
iSwitch 2000U-TR

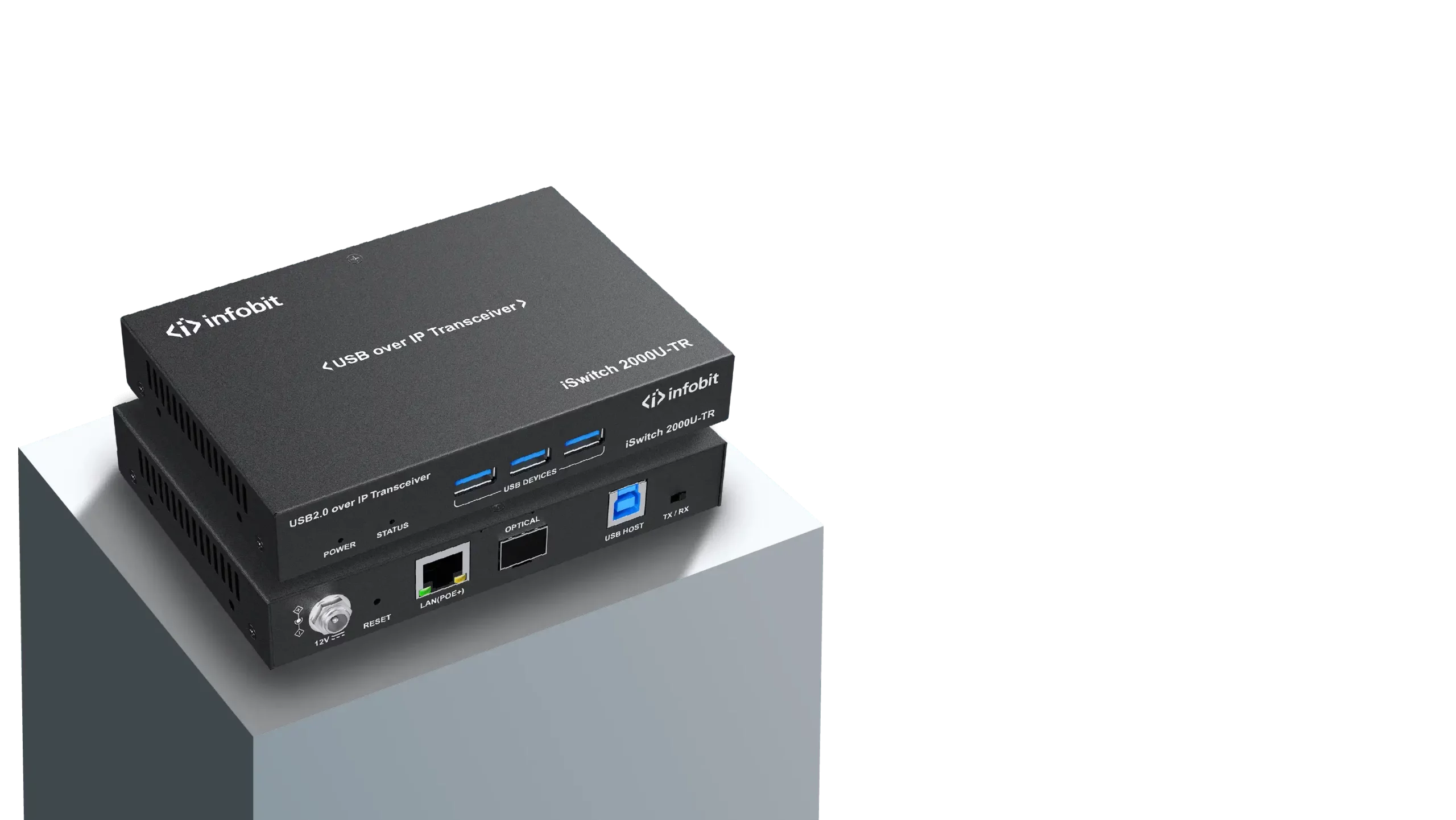

 USB over IP Transceiver
USB over IP Transceiver

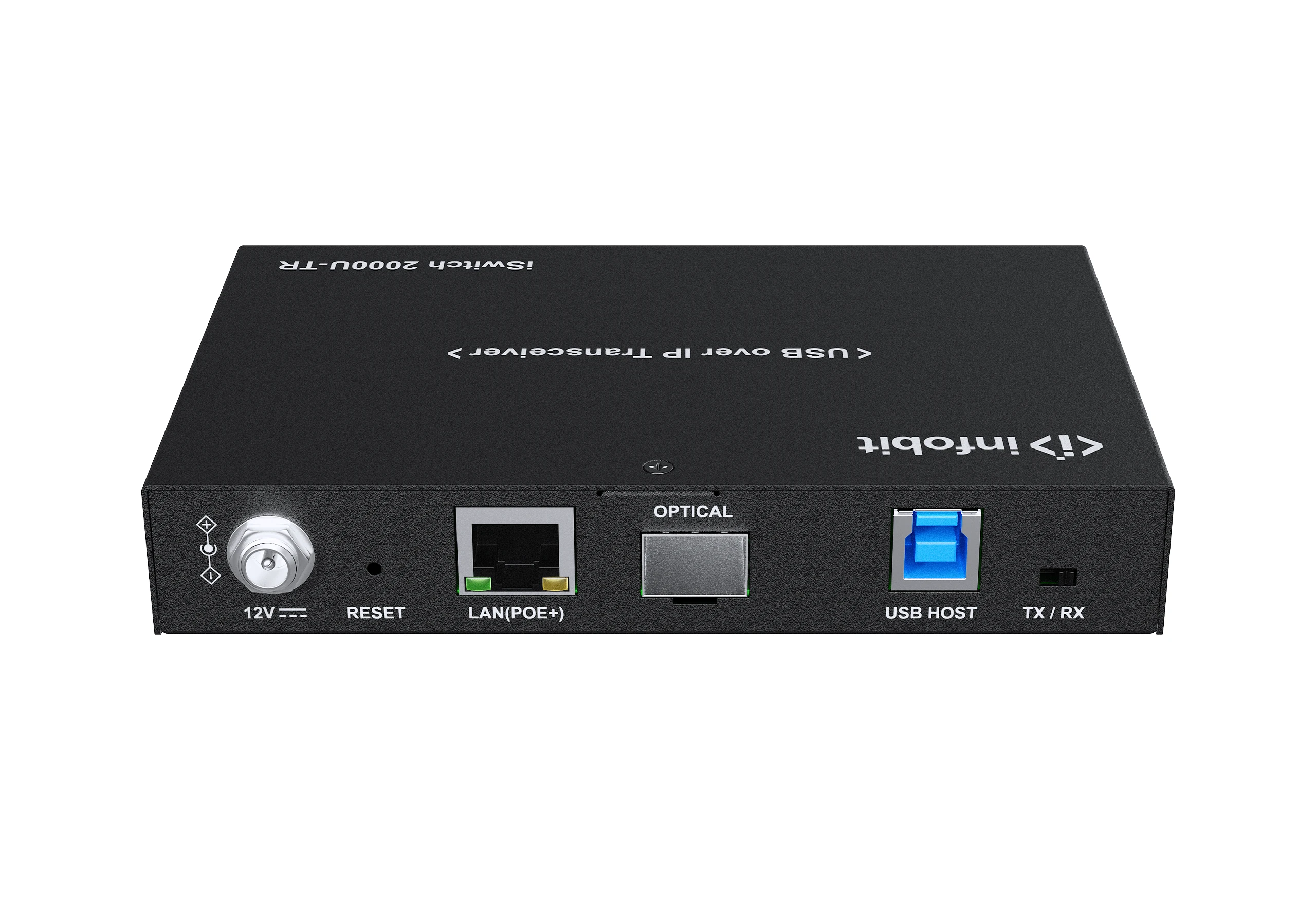

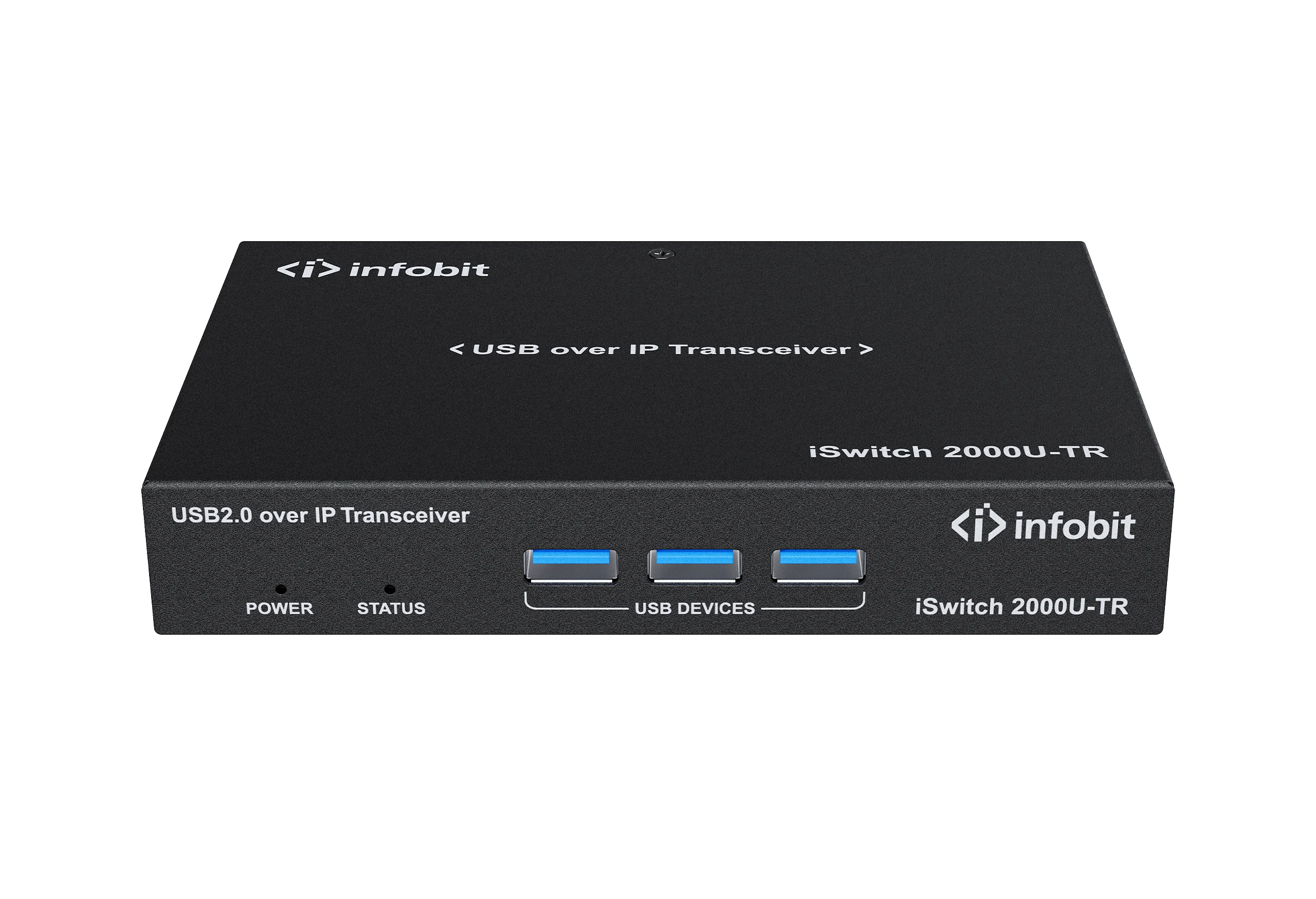

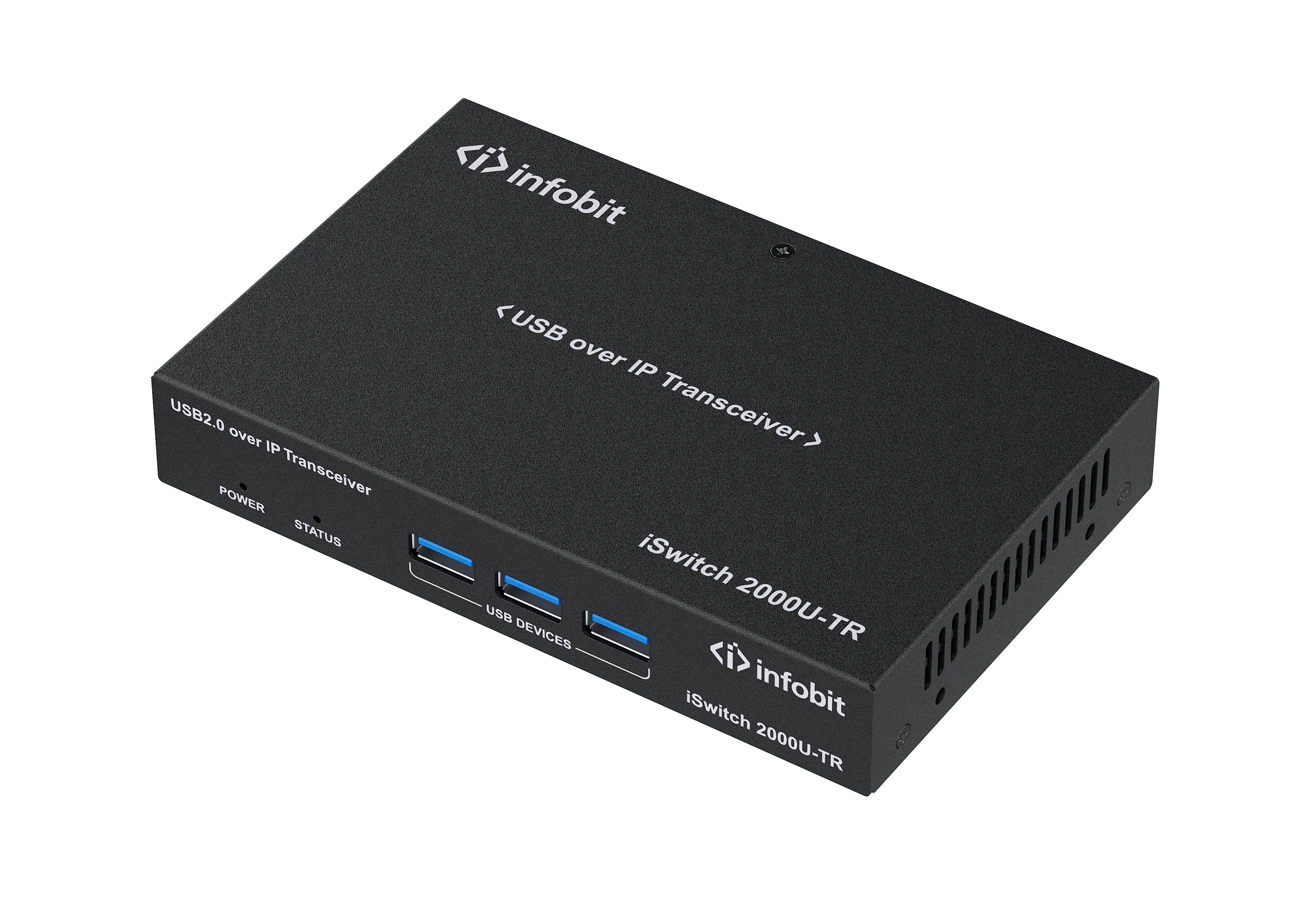

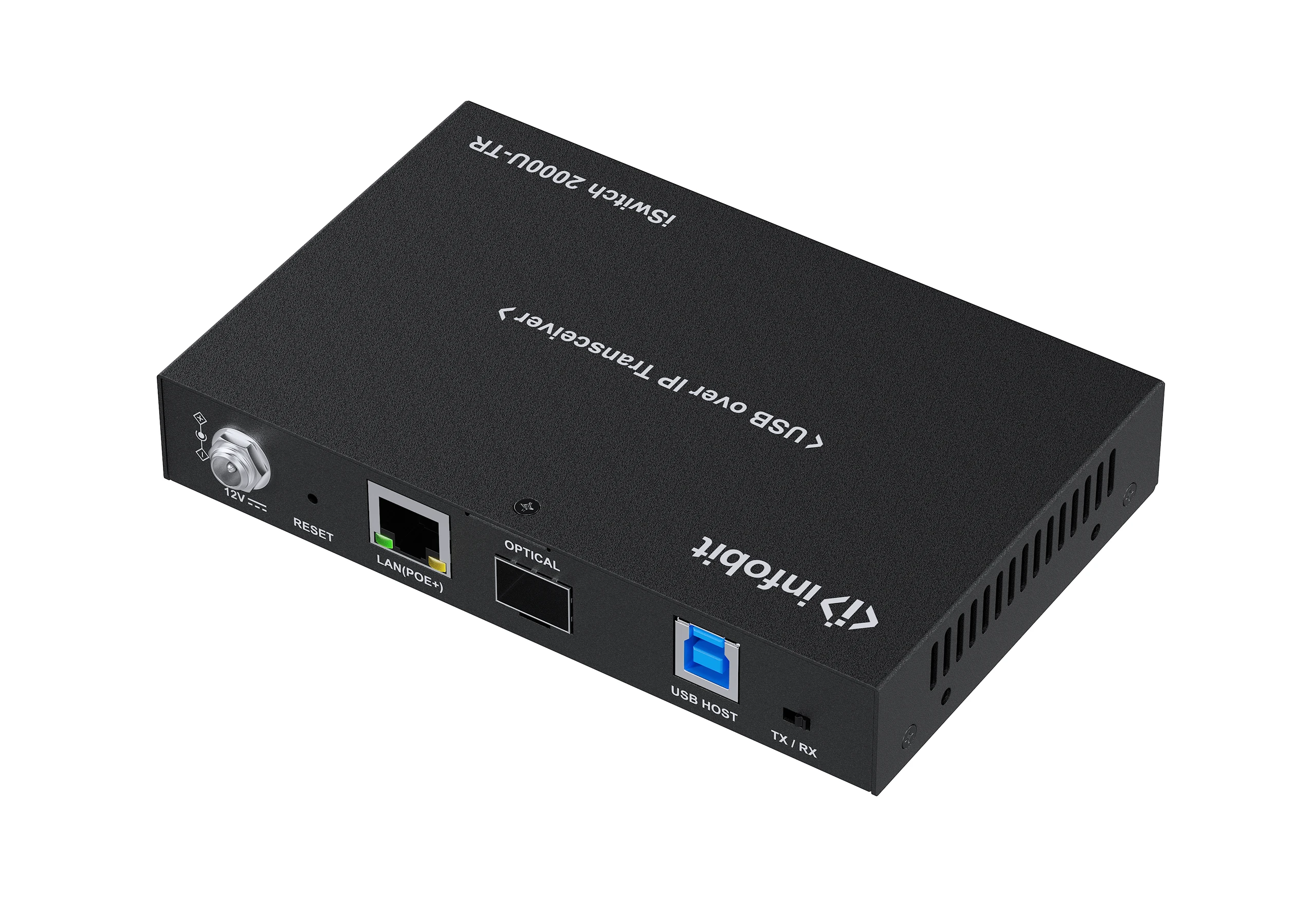

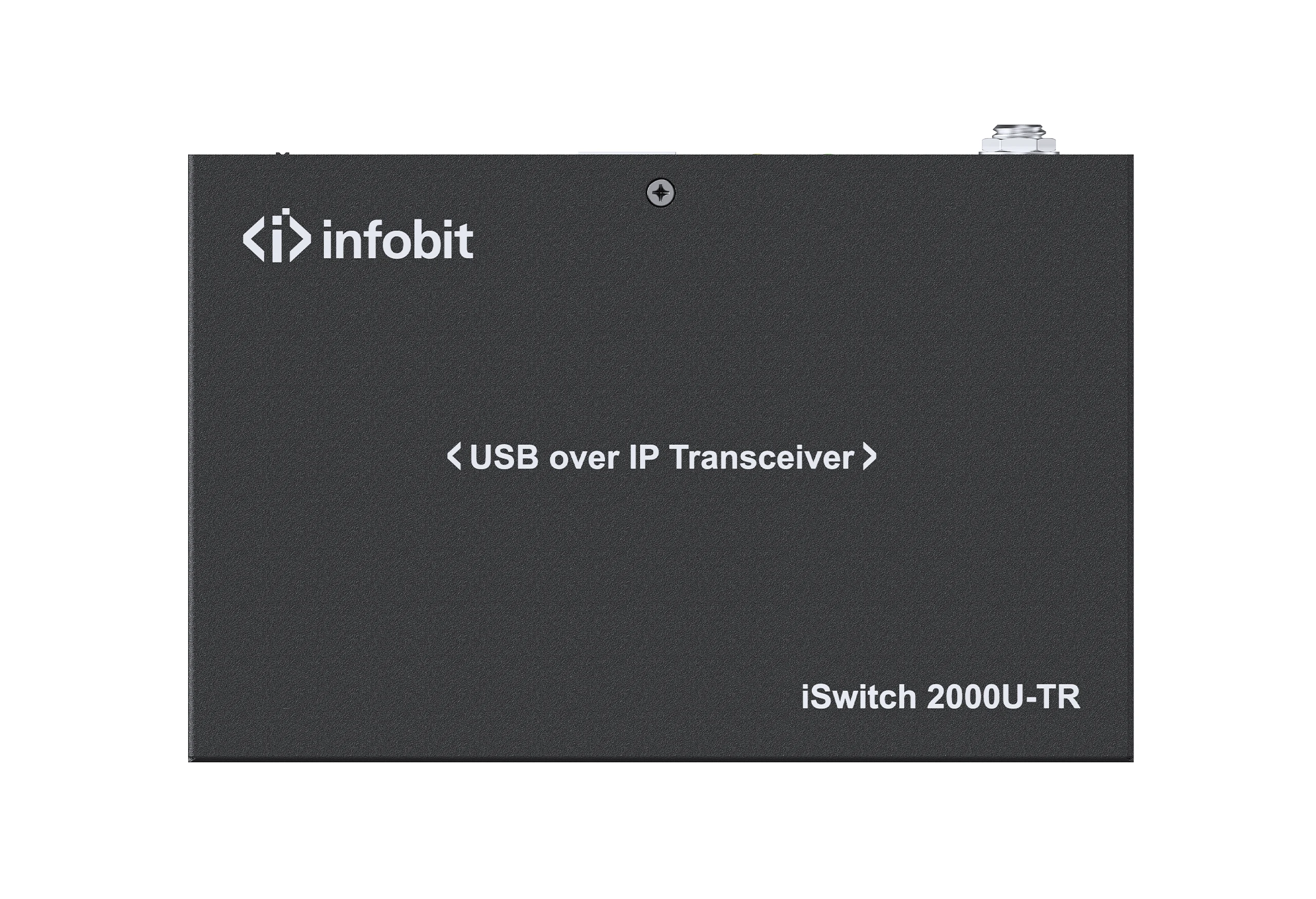

The iSwitch 2000U-TR is a USB 2.0 transceiver
configurable as either a transmitter or a receiver
for USB extension over Gigabit Ethernet.

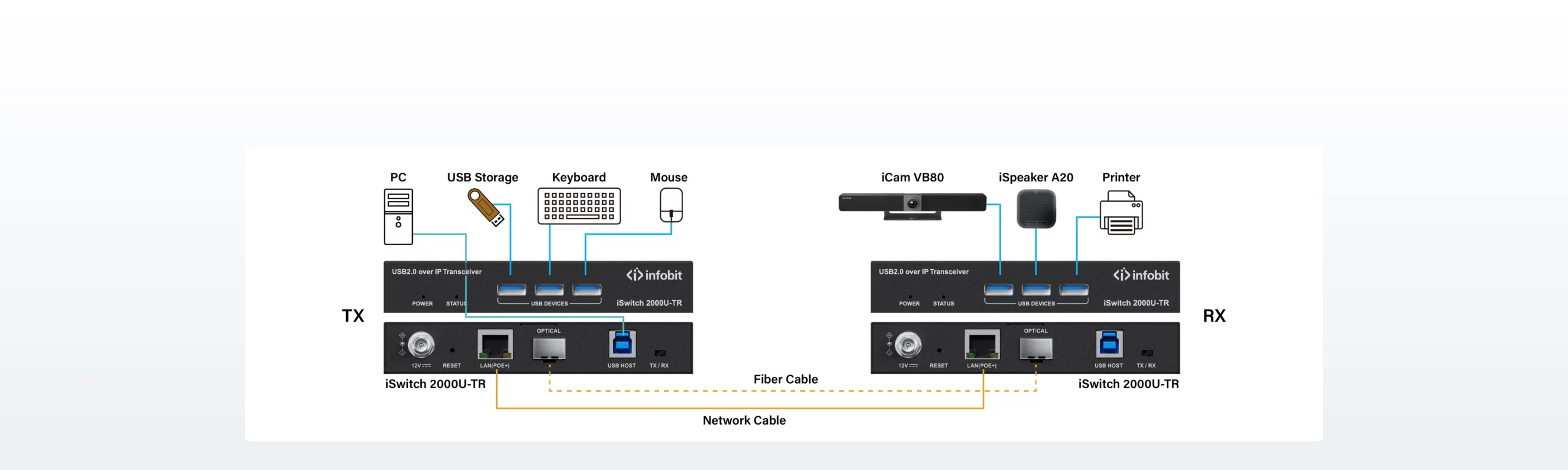

 POINT-TO-POINT
POINT-TO-POINT

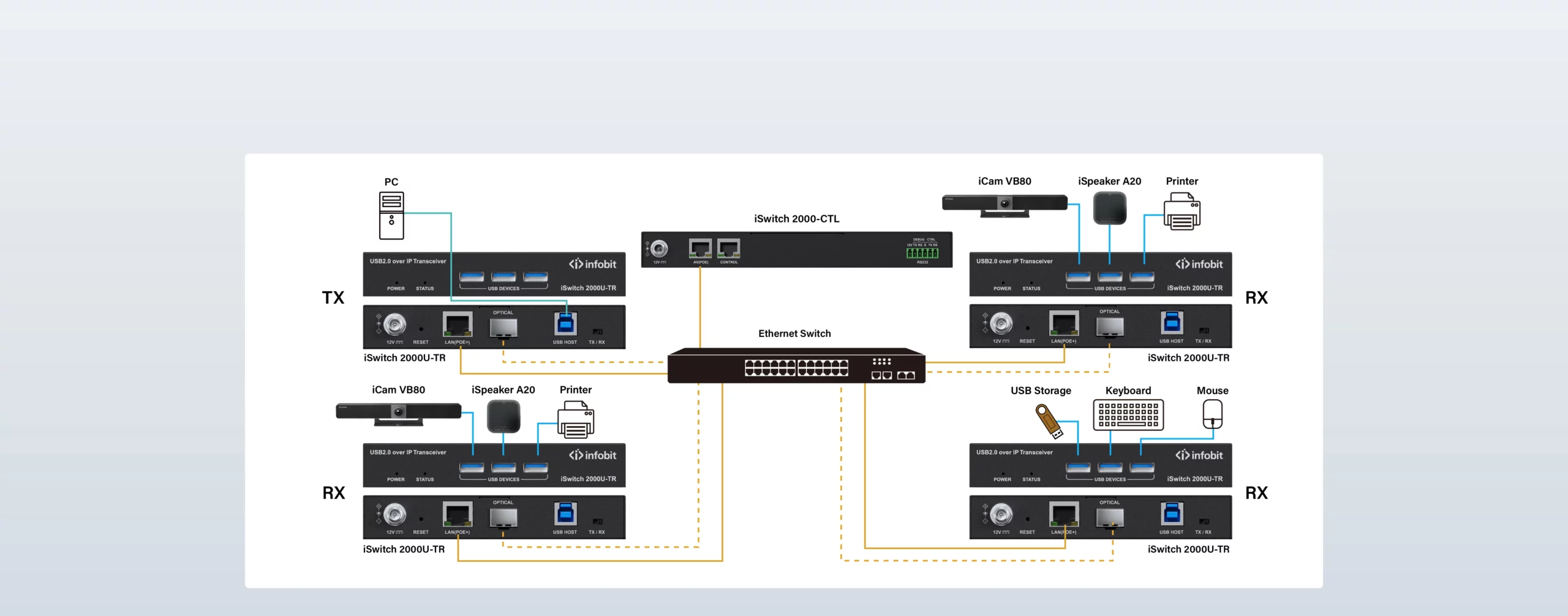

 POINT-TO-MULTIPOINT
POINT-TO-MULTIPOINT

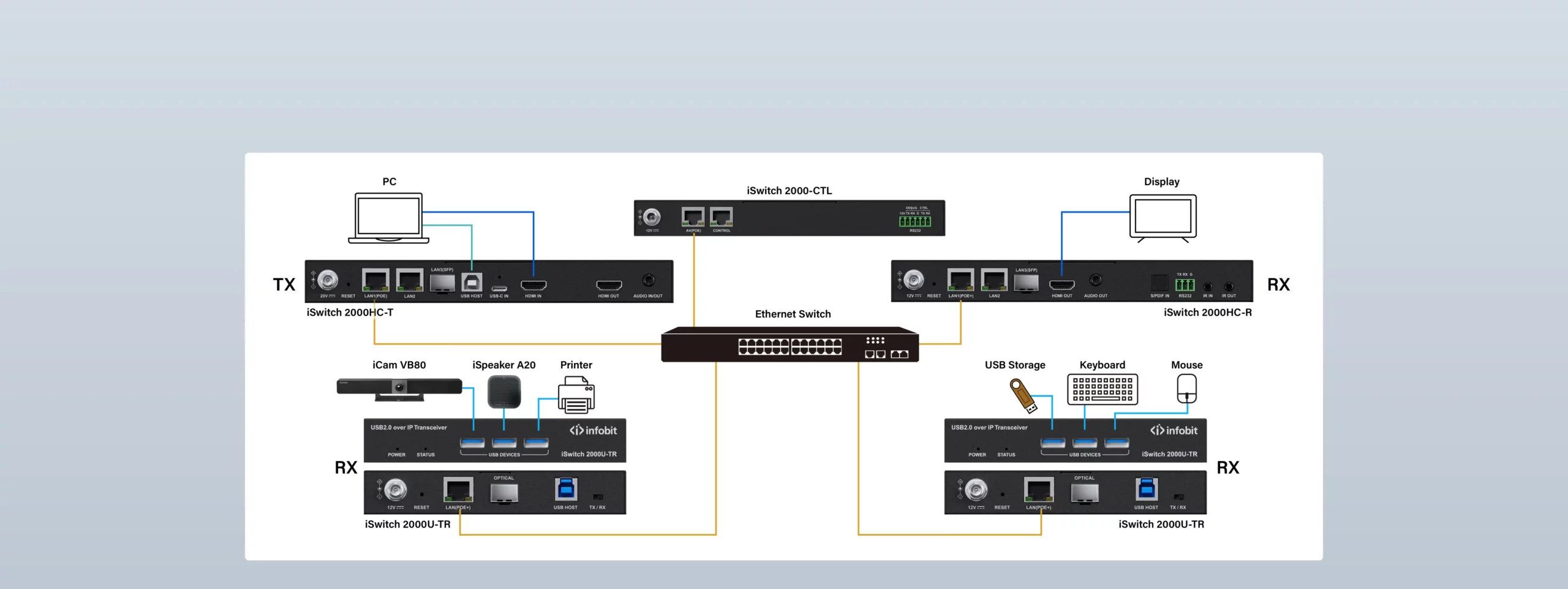

 WORK WITH AV OVER IP
WORK WITH AV OVER IP
Datasheet
Modelo iSwitch 2000U-TR
Nome USB over IP Transceiver
Técnico

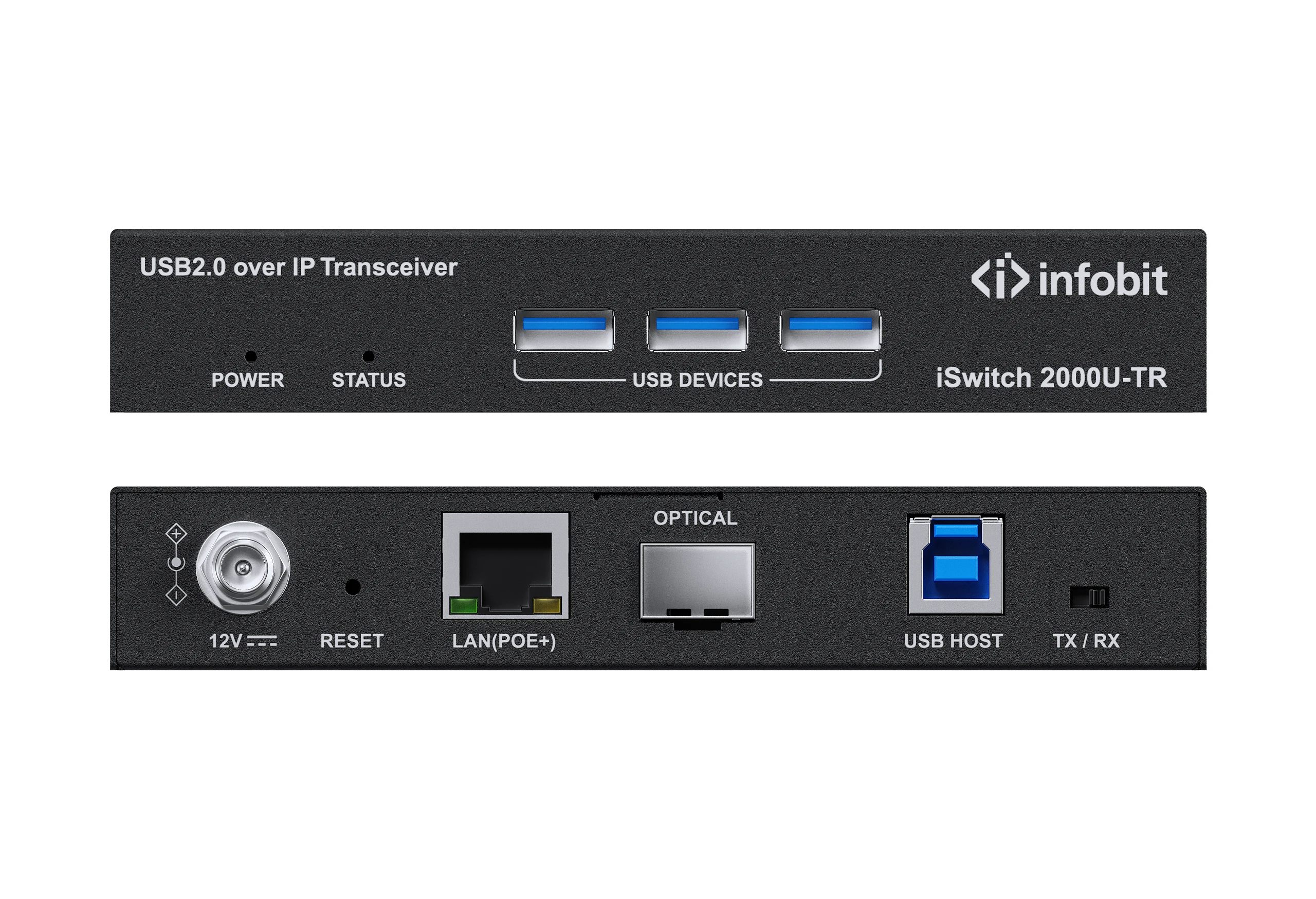

Host USB 1 x USB 3.2 Gen 2 Type-B, 10Gbps
USB Device ‐   Local end: 3 x USB 3.2 Gen 2 Type-A, 10Gpbs (applies to TX mode)
‐   Remote end: 3 x USB 2.0 Type-A, 480Mbps (applies to RX mode)
LAN 1 x RJ45 (PoE+)
Métodos de Controlo ‐   DIP switch (for TX/RX configuration)
‐   IP controller (iSwitch 2000-CTL)
‐   Telnet API
General
Temperatura Operativa/ Humidez 32°F – 113°F (0°C – 45°C), 10% – 90%, non-condensing
Temperatura de armazenamento/ Humidez -4°F – 158°F (-20°C – 70°C), 10% – 90%, non-condensing
Protecção da ESD Modelo corporal humano: ±8kV (descarga de ar-vazio) / ±4kV (descarga de contato)
Fornecimento de energia 12V DC; PoE+
Consumo de energia ‐   No load: 2.2W
‐   Max.: 18.5W (full load with 3A current)
Dimensão do dispositivo (W x H x D) 5.51” x 0.93” x 3.54” (140 mm x 23.5 mm x 90 mm)
Peso Neto 0.70lb (0.32kg)
