6.9-inch control panel
ARM Cortex-A55 architecture 1.8Ghz main frequency.
Android 11.0 system, 4GB DDR4 RAM, 32GB EMMC Flash.
6.9-inch 1440*720 (1:1) resolution, capacitive touch screen, standard UK box wall-in design.
One machine with two modes can serve as a touchscreen central controller or a user terminal.
Support one RS-232 serial communication port, configuring 8 baud rates in the range of 2400-115200bps.
Support access to the host system management web page with a password.
Interface design and programming through IDE design tools.
Compliant with industry standard network communication protocols (TCP/IP, HTTP, UDP, Websocket)
With 1 Gigabit network port, the highest rate is up to 1G/bps.

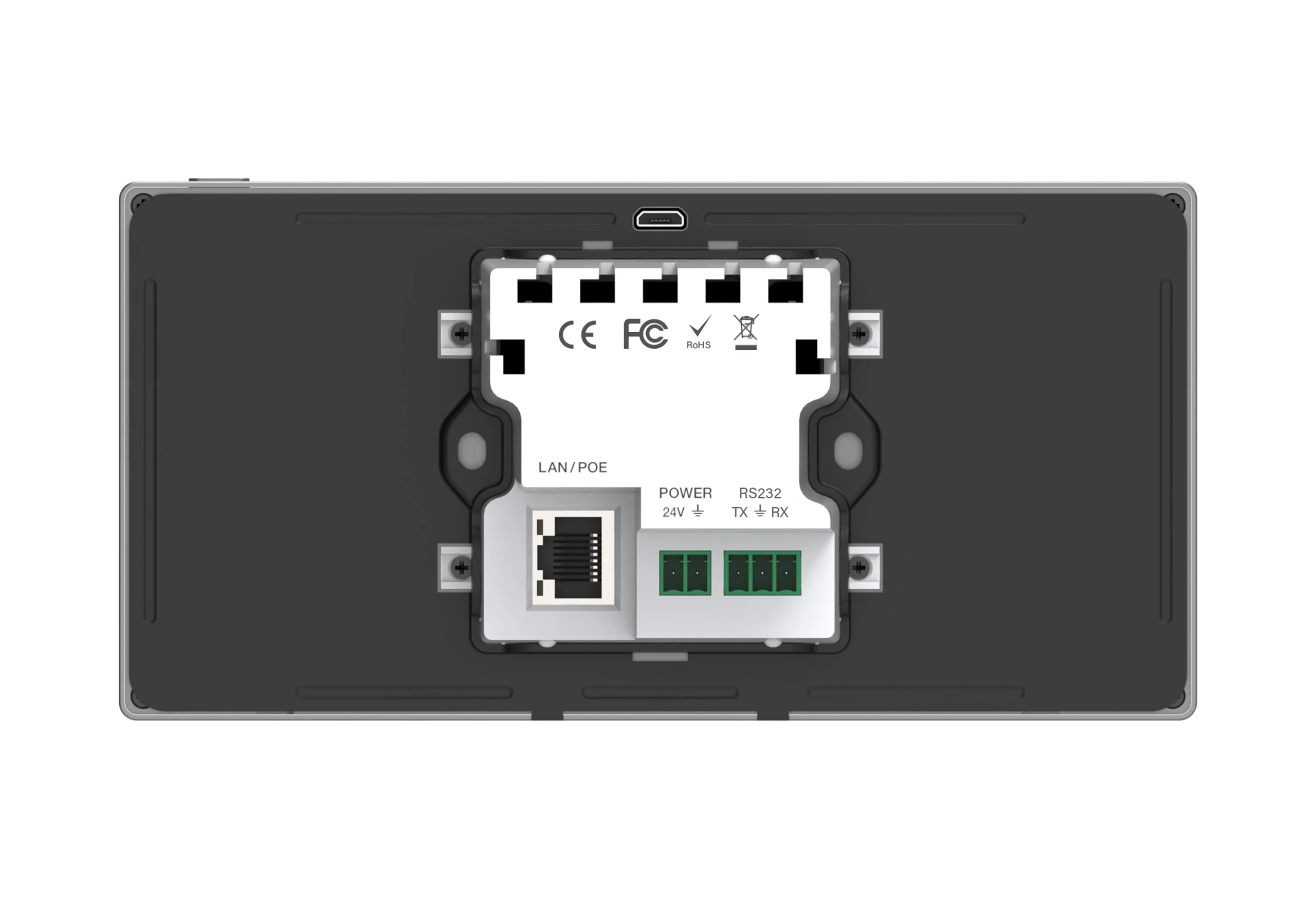

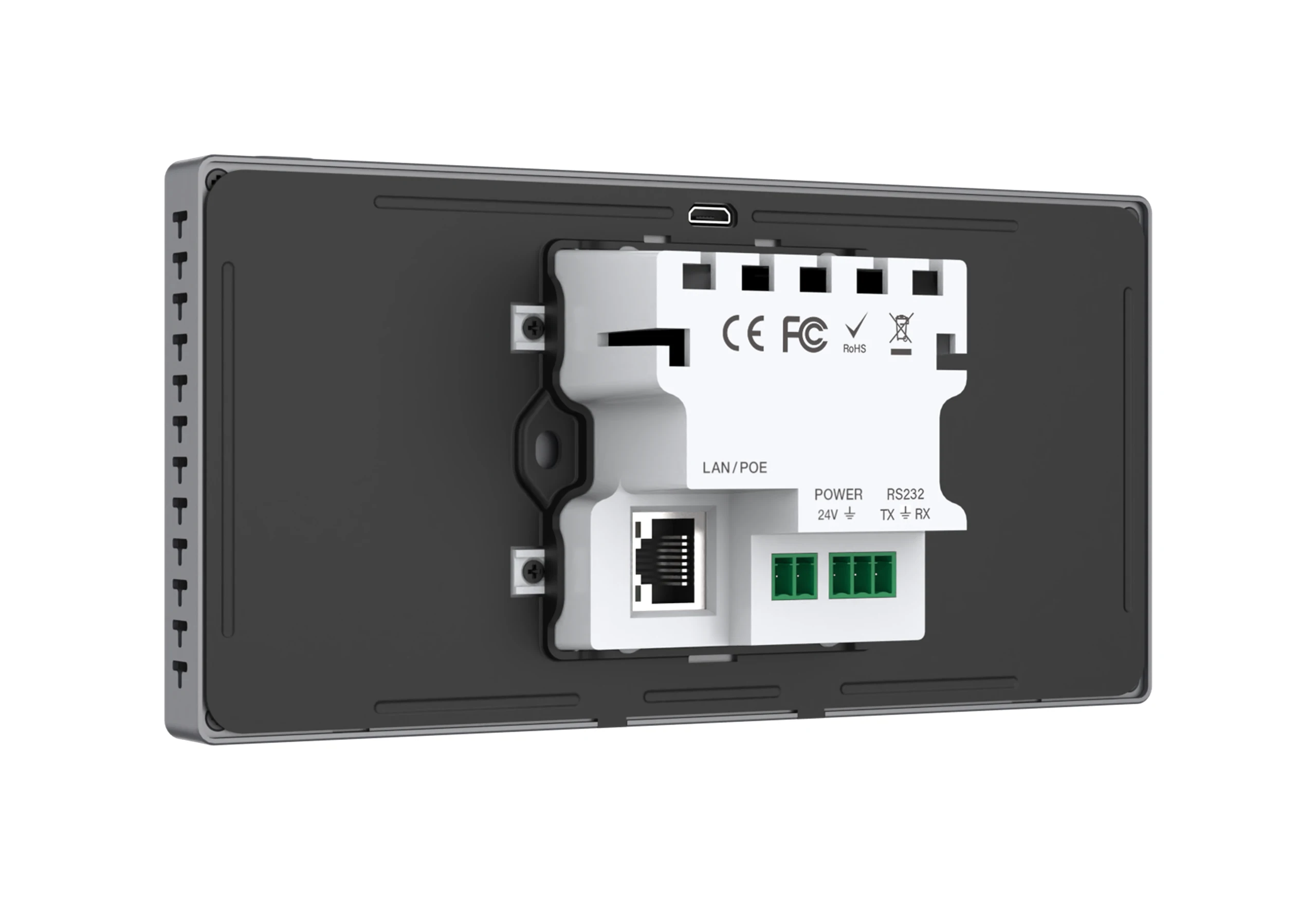

Dual power supply mode, supporting PoE or DC power supply.
الدعم factory reset.
