AOC Technology: Uses fiber optics for high-speed video data and copper for lower-speed power and signaling. This hybrid design allows for much longer cable runs than standard copper cables.

4K Performance: Fully supports the HDMI 2.0 standard, including 4K resolution at 60Hz, 18Gbps bandwidth, and HDR (High Dynamic Range).

Armoured Protection: Features a ruggedized internal layer, often made of stainless steel tubing or heavy-duty metal mesh. This makes the cable crush-resistant (up to 500kg in some models) and protects against rodent bites or physical deformation.

Plug-and-Play: Draws power directly from the connected HDMI source and display, eliminating the need for an external power supply.

Robust Materials: Typically finished with a durable TPU jacket, which provides resistance to water, oil, acids, and extreme temperatures.

Available lengths: 5, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, and 100m.

ملاحظة: The AOC cables can be without the “protection cover”; please notify INFOBIT sales before placing an order.

AOC-HDMI-AAxxK
AOC-HDMI-AAxxK
AOC-HDMI-AAxxK
AOC-HDMI-AAxxK
 Armored AOC Cable Structure
Armored AOC Cable Structure
This hybrid cable integrates optical fiber with copper wiring.
Reinforced by steel armor and aramid fibers,
it ensures high-speed transmission and rugged physical protection in demanding environments.

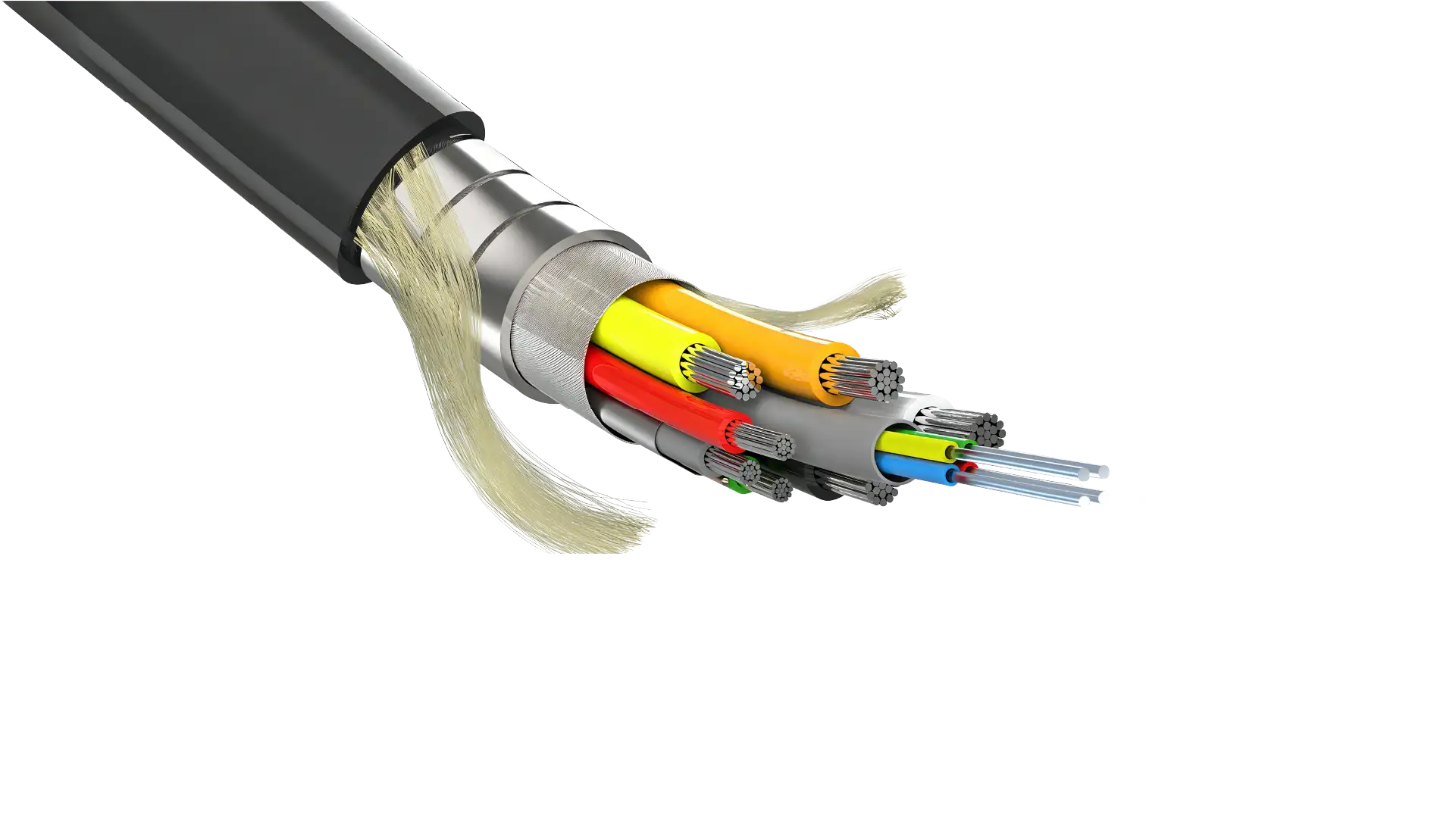

 Rugged physical protection
Rugged physical protection
The hybrid cable combining high-speed optical fibers with copper wires.
Steel armor and aramid fibers provide heavy-duty protection against
crushing and pulling in harsh environments.
ورقة البيانات
نماذج الطول   مواصفات
AOC-HDMI-AA05K 5M HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 5m • Black zinc alloy housing
• Gold-plated connectors
• Supports computer resolutions to 4K060Hz04:4:4, 18 Gbps bandwidth, RGB 4:4:4, 3D, HDCP 2.2, HDR10, and ARC (Audio Return Channel).
• Plug and Play
• Compatible with the HDMI 2.0 standard
• Support HDCP2. 2@ARC
• Self-detecting function for EDID information
• No loss of signal
• Hybrid optical cable with fiber and copper wire
• PIN gold-plated. shell gold-plated
• With anti – sunlight ultraviolet irradiation, acid, alkali, oil resistance, and fire retardant. Enable cables to meet harsh environmental applications.
• Operating temperature:-40°C to 70°C
• Minimum bending radius 20mm
• Max. tension force: 100N
• Powered via HDMI devices
• 4-core OM3 Multimode Fiber (high-speed data) and 7-core copper cable
• Round cable Black TPU Jacket
• RoHS 2.0 & REACH compliant
AOC-HDMI-AA10K 10M HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 10m
AOC-HDMI-AA15K 15M HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 15m
AOC-HDMI-AA20K 20M HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 20m
AOC-HDMI-AA25K 25M HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 25m
AOC-HDMI-AA30K 30 متر HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 30m
AOC-HDMI-AA40K 40M HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 40m
AOC-HDMI-AA50K 50 متر HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 50m
AOC-HDMI-AA60K 60M HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 60m
AOC-HDMI-AA70K 70 مليون HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 70m
AOC-HDMI-AA80K 80 متر HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 80m
AOC-HDMI-AA90K 90M HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 90m
AOC-HDMI-AA100K 100م HDMI 2.0 4K Active Optical Cable, Type A to A, Armoured 100m
تحميل
  • INFOBIT HDMI Armoured AOC-HDMI-AAxxK datasheet V1.0.pdf
    0.95M
    2026-03-30
